Danfoss Hansen Universal Quick Disconnet (UQD) Series

Thermal Management Application

Best in class force to connect

• Standard material: 303, 304 stainless steel provides broad fluid compatibility

• Standard seal material: EPDM

• Color anodized aluminum sleeves

• Color coded (red/blue) sleeves on socket and O-rings on plug

Applications & Markets

Danfoss’ UQD is designed for fluid transfer and electronics cooling applications, available in 4 different sizes and 2 color options. It complies with OCP (Open Compute Project) and exceeds requirements of specified performance characteristics. Danfoss UQD offers color identification (red and blue) and guarantees 100% helium-leak testing.

Danfoss Hansen UQD is designed for thermal management applications, available in 4 sizes and has 2 color options. It complies with OCP (Open Compute Project) and exceeds requirements of specified performance characteristics. Danfoss UQD offers color identification (red and blue) and guarantees 100% helium-leak testing.

Product Features

Phone         770-887-0470

Seal Elastomer P/N Code Operating Temperature Range
EPDM - -40°C +150°C -40°F + 302°F

Text           770-887-0470

Details Dimensions

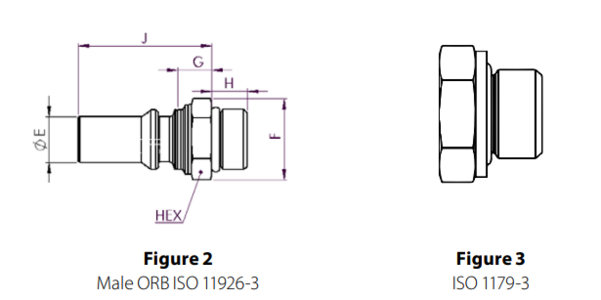

UQD Part Number Threaded End Fig E F G H J Hex
BSP ORB (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in)




UQD02
2UQP43ORMBL*
-

7/16-20

2

6.65

0.26

16.17

0.64

8.7

0.34

9.1

0.36

29.3

1.15

14

0.55
2UQS25HARD*
ML2UQP12MBSBL
1/8

-

3

6.65

0.26

17.32

0.68

8.7

0.34

8

0.31

30.4

1.20

15

0.59
ML2UQP12MBSRD




UQD04
4UQP56ORMBL*
-

9/16-18

2

11.07

0.44

25.40

1.00

9.80

0.39

9.9

0.39

37.9

1.49

17

0.67
4UQP56ORMRD*
ML4UQP37MBSBL
3/8

-

3

11.07

0.44

25.40

1.00

9.80

0.39

11.2

0.44

37.9

1.49

22

0.87
ML4UQP37MBSRD




UQD06
6UQP75ORMBL*
-

3/4-16

2

14.3

0.56

25.40

1.00

10

0.39

11.1

0.44

41.6

1.64

22

0.87
6UQP75ORMRD*
ML6UQP37MBSBL
3/8

-

3

14.3

0.56

25.40

1.00

10

0.39

11.2

0.44

41.6

1.64

22

0.87
ML6UQP37MBSRD




UQD08
8UQP87ORMBL
-

7/8-14

2

17.48

0.69

31.18

1.23

12

0.47

12.7

0.50

47.6

1.87

27

1.06
8UQP87ORMRD
8UQP50MBSBL
1/2

-

6

17.48

0.69

34.64

1.36

12

0.47

14.5

0.57

47.6

1.87

30

1.18
8UQP50MBSRD

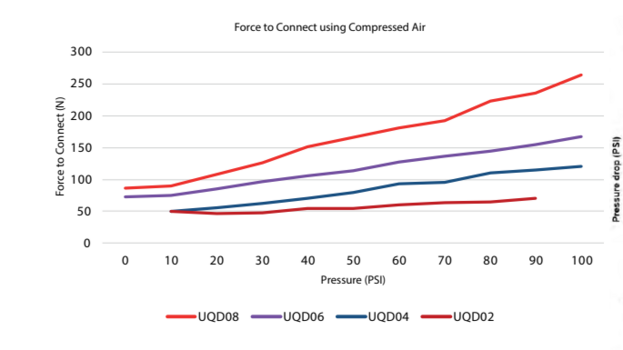

Force to Connect Data

Inner Rack Solutions Danfoss’ direct-to-chip cooling solutions extend into the racks through efficient routing of flexible, kink-free hoses, and leak free, helium-tested couplings.

Max operating pressure Min burst pressure
Size Body Nominal Flow Diameter Connected Socket Plug Connected Socket Plug Rated Flow Cv Value Air Inclusion Fluid Loss
(in) (mm) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (bar) (psi) (lpm (gpm - cc max. cc max.
UQD02 1/8 2.8 20 290 20 290 20 290 60 870 60 870 60 870 2.1 0.6 0.33 0.004 0.007
UQD04 1/4 5.5 16 232 16 232 16 232 48 696 48 696 48 696 6.4 1.7 1.37 0.0024 0.01
UQD06 3/8 6.3 6.9 100 6.9 100 6.9 100 20.7 300 20.7 300 20.7 300 11.4 3.0 2.37 0.027 0.022
UQD08 1/2 8.9 6.9 100 6.9 100 6.9 100 20.7 300 20.7 300 20.7 300 17.8 4.7 5.32 0.029 0.03
Details Dimensions

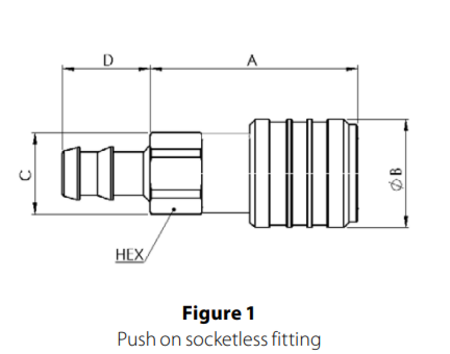

UQD Part Number Hose Stem End Fig A B C D HEX
(mm) (in) (mm) (in) (mm) (in) (mm) (in) (mm) (in)

UQD02
2UQS25HABL*
1/4

1

46.2

1.82

23

0.91

15.5

0.61

19

0.75

14

0.55
2UQS25HARD*

UQD04
4UQS37HABL*
3/8

1

60.7

2.39

28.7

1.13

20

0.79

22

0.87

18

0.71
4UQS37HARD*

UQD06
6UQS50HABL*
1/2

1

61.1

2.41

31.7

1.25

24

0.94

25.8

1.02

22

0.87
6UQS50HARD*

UQD08
8UQS62HABL
5/8

1

68.4

2.69

35

1.38

30

1.18

39

1.54

27

1.06
8UQS62HARD

Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.

Toll Free     855-457-4474

Fax             706-265-1477

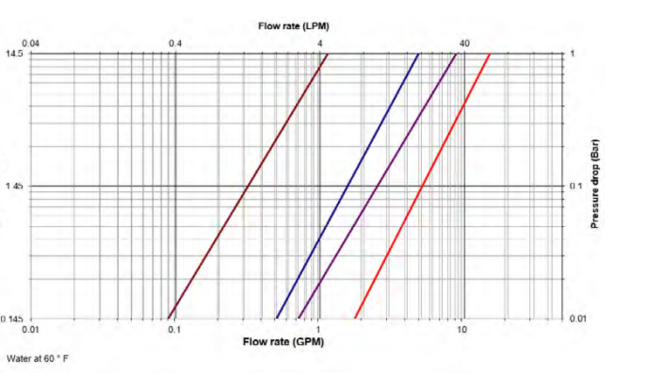

Flow Data

Seal Elastomer Data

UQD Series

Danfoss Hansen UQD is designed for thermal management applications, available in 4 sizes and has 2 color options. It complies with OCP (Open Compute Project) and exceeds requirements of specified performance characteristics. Danfoss UQD offers color identification (red and blue) and guarantees 100% helium-leak testing.

Solutions to your liquid cooling challenges

Wide range of terminal end options: ORB, BSPP on plug and push on hose on socket. Additional configurations available upon request

• Operating temperature -40°C to +150°C

• Typical working pressure: 6.9 Bar, up to 20 bar for smaller sizes
