| Part Number | Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | ||||
| 1K11 | 1/8 | 5 | 1/8-27 | - | - | 3 |
| 1K4 | 1/8 | 5 | - | - | 7/16-20 | 3 |
| 2K16 | 1/4 | 6.3 | 1/4-18 | - | - | 3 |
| 2K16BS | 1/4 | 6.3 | - | 1/4-19 | - | 3 |
| 2K6 | 1/4 | 6.3 | - | - | 9/16-8 | 3 |
| 3K21 | 3/8 | 10 | 3/8-18 | - | - | 3 |
| 3K21BS | 3/8 | 10 | - | 3/8-19 | - | 3 |
| 3K8 | 3/8 | 10 | - | - | 3/4-16 | 3 |
| 4KP26 | 1/2 | 12.5 | 1/2-14 | - | - | 3 |
| 4KP26BS | 1/2 | 12.5 | - | 1/2-14 | - | 3 |
| 4KP10 | 1/2 | 12.5 | - | - | 7/8-14 | 3 |
| 6KP31 | 3/4 | 20 | 3/4-14 | - | - | 3 |
| 6KP31BS | 3/4 | 20 | - | 3/4-14 | - | 3 |
| 6KP12 | 3/4 | 20 | - | - | 1 1/8-12 | 3 |
| 8KP36 | 1 | 25 | 1-11 1/2 | - | - | 3 |
| 8KP36BS | 1 | 25 | - | 1-11 | - | 3 |
| 8KP16 | 1 | 25 | - | - | 1 5/16-12 | 3 |
| Part Number | Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | ||||
| 10H41* | 1 1/4 | - | 1 1/4-11 1/2 | - | - | 2 |
| 10H41BS* | 1 1/4 | - | - | 1 1/4-11 | - | 2 |
| 12H41 | 1 1/2 | 40 | 1 1/4-11 1/2 | - | - | 2 |
| 12H41BS | 1 1/2 | 40 | - | 1 1/4-11 | - | 2 |
| 12H46 | 1 1/2 | 40 | 1 1/2-11 1/2 | - | - | 2 |
| 12H46BS | 1 1/2 | 40 | - | 1 1/2-11 | - | 2 |
| 20H51 | 2 1/2 | 50 | 2-11 1/2 | - | - | 2 |
| 20H51BS | 2 1/2 | 50 | - | 2-11 | - | 2 |
| 20H56 | 2 1/2 | 50 | 2 1/2-8 | - | - | 2 |
| 20H56BS | 2 1/2 | 50 | - | 2 1/2-11 | - | 2 |
| 20H61 | 2 1/2 | 50 | 3-8 | - | - | 2 |
| 20H61BS | 2 1/2 | 50 | - | 3-11 | - | 2 |
Figure 1

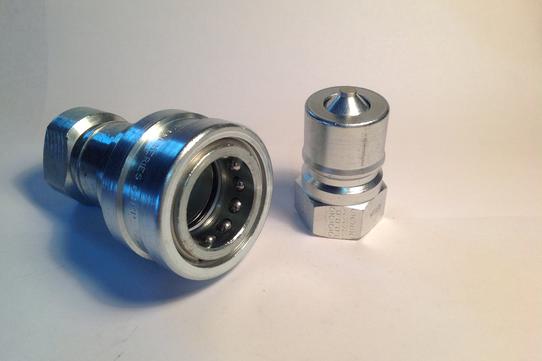

The Hansen HK Series coupling sets the industry standard for ISO B Couplings. The HK Series features a rugged ball latch mechanism with automatic self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.
Physical Characteristics

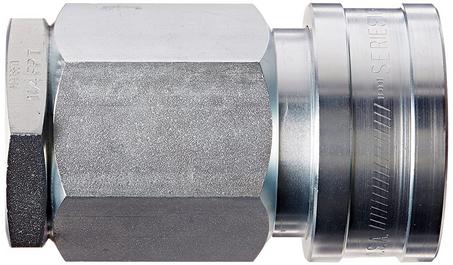

Figure 3
* ISO 7241-1 Series B does not include 1-¼ inch body size couplings; therefore, Series 10HK is not covered by this standard
| Seal Elastomer | Max Operating Temperature |
|---|---|
| Buna-N | -40°C to 121°C / 40°F to 150°F |
| Neoprene | -54°C to 100°C / -65°F to 212°F |
| EPDM (Ethelene Propylene Rubber) | -54°C to 149°C / -65°F to 300°F |
| FKM (Viton) | -29°C to 204°C / -15°F to 400°F |
• Agriculture
• Hydraulic Tool
• General Industry
• Construction
• Fluid Transfer
• Consumer Products
• HVAC
• Food and Beverage
• Trucks • Aerospace
• Medical
Applications & Markets
| Part Number | Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | ||||
| 1H11 | 1/8 | 5 | 1/8-27 | - | - | 1 |
| 1H4 | 1/8 | 5 | - | - | 7/16-20 | 1 |
| 2H16 | 1/4 | 6.3 | 1/4-18 | - | - | 1 |
| 2H16BS | 1/4 | 6.3 | - | 1/4-19 | - | |
| 2H6 | 1/4 | 6.3 | - | - | 9/16-8 | 1 |
| 3H21 | 3/8 | 10 | 3/8-18 | - | - | 1 |
| 3H21BS | 3/8 | 10 | - | 3/8-19 | - | 1 |
| 3H8 | 3/8 | 10 | - | - | 3/4-16 | 1 |
| 4HP26 | 1/2 | 12.5 | 1/2-14 | - | - | 1 |
| 4HP26BS | 1/2 | 12.5 | - | 1/2-14 | - | 1 |
| 4HP10 | 1/2 | 12.5 | - | - | 7/8-14 | 1 |
| 6HP31 | 3/4 | 20 | 3/4-14 | - | - | 1 |
| 6HP31BS | 3/4 | 20 | - | 3/4-14 | - | 1 |
| 6HP12 | 3/4 | 20 | - | - | 1 1/8-12 | 1 |
| 8HP36 | 1 | 25 | 1-11 1/2 | - | - | 1 |
| 8HP36BS | 1 | 25 | - | 1-11 | - | 1 |
| 8HP16 | 1 | 25 | - | - | 1 5/16-12 | 1 |
• Standard body material: Zinc trivalent plated steel with stainless steel springs, balls and retaining rings.
• PTFE back up rings in sockets (females)

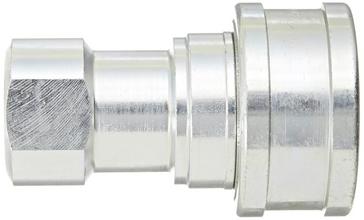

Figure 2
* For questions related to vacuum please contact us
** No ISO Standard available for the 10HK
*Brass - **Aluminum - Part numbers ending in RD indicate the color RED

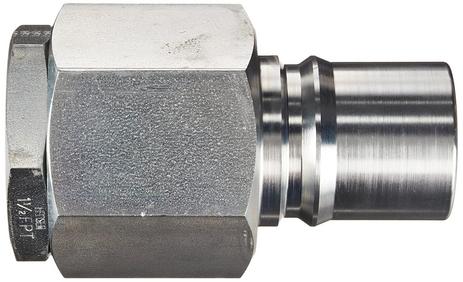

Figure 4
• Standard seal material: Buna-N
• Seal options available in PTFE, Neoprene, FKM, EPDM, and Kalrez®
- Optional Sleeve Lock
Product Features

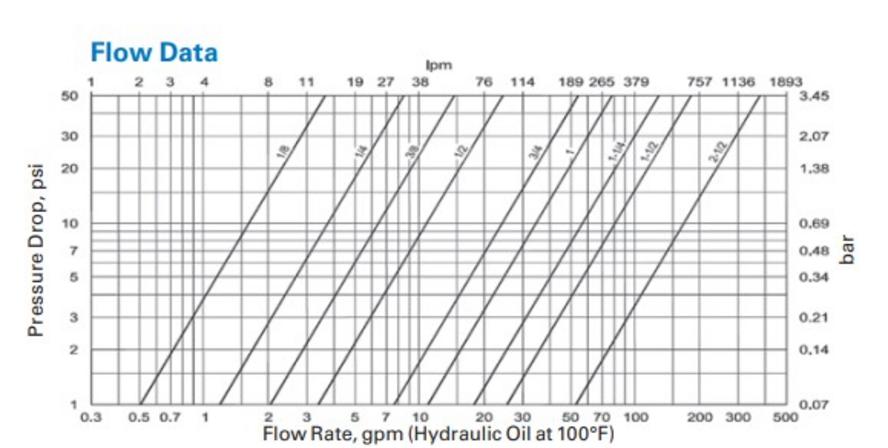

| Series | Body Size | ISO Size | Nominal Flow Size | Max Operating Pressure | Rated Flow | Air Inclusion | Fluid Loss |
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (mm) | (PSI) | (GPM) | (cc max) | (cc max) | |
| 1HK | 1/8 | 5 | 4.4 | 4000 | .8 | .6 | .5 |
| 2HK | 1/4 | 6.3 | 5.9 | 5000 | 3 | 1.2 | .9 |
| 3HK | 3/8 | 10 | 7.8 | 4000 | 6 | 2.9 | 2.1 |
| 4HK | 1/2 | 12.5 | 10 | 5000 | 12 | 3.6 | 3.5 |
| 6HK | 3/4 | 20 | 17 | 4000 | 26 | 11.5 | 9.3 |
| 8HK | 1 | 25 | 19.6 | 4000 | 50 | 18 | 16.9 |
| 10HK | 1 1/4** | - | 26.7 | 1700 | 76 | 48 | 48 |
| 12HK | 1 1/2 | 40 | 35.1 | 2200 | 99 | 91.3 | 91.3 |
| 20HK | 2 1/2 | 50 | 46 | 1500 | 200 | 209.9 | 209.9 |
- Meets dimensional requirements to ISO standard 7241-1 Series B
- The coupling that sets the industry standard
- Self-sealing poppet valve design provides excellent high and low pressure sealing
* ISO 7241-1 Series B does not include 1-¼ inch body size couplings; therefore, Series 10HK is not covered by this standard
• Transportation
• Military
• Law Enforcement/Rescue
• Chemical
• Oil and Gas
| Part Number | Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | ||||
| 10K41* | 1 1/4 | - | 1 1/4-11 1/2 | - | - | 4 |
| 10K41BS* | 1 1/4 | - | - | 1 1/4-11 | - | 4 |
| 12K41 | 1 1/2 | 40 | 1 1/4-11 1/2 | - | - | 4 |
| 12K41BS | 1 1/2 | 40 | - | 1 1/4-11 | - | 4 |
| 12K46 | 1 1/2 | 40 | 1 1/2-11 1/2 | - | - | 4 |
| 12K46BS | 1 1/2 | 40 | - | 1 1/2-11 | - | 4 |
| 20K51 | 2 1/2 | 50 | 2-11 1/2 | - | - | 4 |
| 20K51BS | 2 1/2 | 50 | - | 2-11 | - | 4 |
| 20K56 | 2 1/2 | 50 | 2 1/2-8 | - | - | 4 |
| 20K56BS | 2 1/2 | 50 | - | 2 1/2-11 | - | 4 |
| 20K61 | 2 1/2 | 50 | 3-8 | - | - | 4 |
| 20K61BS | 2 1/2 | 50 | - | 3-11 | - | 4 |
* ISO 7241-1 Series B does not include 1-¼ inch body size couplings; therefore, Series 10HK is not covered by this standard

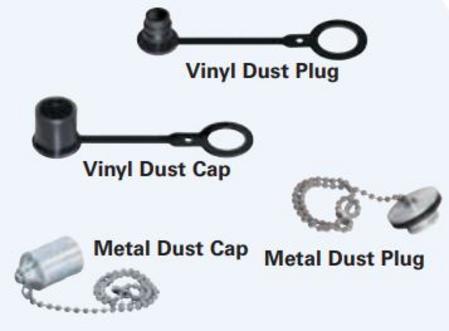

| COUPLING SERIES | METAL PLUG DUST CAP | VINYL PLUG DUST CAP | METAL SOCKET DUST CAP | VINYL SOCKET DUST CAP |
|---|---|---|---|---|
| 1HK | PDC1HK* | PPDC1HK | SDC1HK* | PSDC1HK |
| 2HK | PDC2HK* | PPDC2HK | SDC2HK* | PSDC2HK |
| 3HK | PDC3HK* | PPDC3HK | SDC3HK* | PSDC3HK |
| 4HK | PDC4HK** | PPDC4HK PPDC4HKRD |
SDC4HK** | PSDC4HK PSDC4HKRD |
| 6HK | PDC6HK** | PPDC6HK PPDC6HKRD |
SDC6HK** | PSDC6HK PSDC6HKRD |
| 8HK | PDC8HK** | PPDC8HK PPDC8HKRD |
SDC8HK** | PSDC8HK PSDC8HKRD |
| 12HK | PDC12HK* | - | SDC12HK* | - |
| 20HK | PDC20HK* | - | SDC20HK* | - |
