Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.
| Part Number 303 Stainless Steel |
Part Number 316 Stainless Steel |
Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | |||||
| LL1K11 | ML1K11 | 1/8 | 5 | 1/8-27 | - | - | 3 |
| LL1K4 | - | 1/8 | 5 | - | - | 7/16-20 | 3 |
| LL2K16 | ML2K16 | 1/4 | 6.3 | 1/4-18 | - | - | 3 |
| LL2K16BS | ML2K16BS | 1/4 | 6.3 | - | 1/4-19 | - | 3 |
| LL2K6 | - | 1/4 | 6.3 | - | - | 9/16-18 | 3 |
| LL3K21 | ML3K21 | 3/8 | 10 | 3/8-18 | - | - | 3 |
| LL3K21BS | ML3K21BS | 3/8 | 10 | - | 3/8-19 | - | 3 |
| LL3K8 | - | 3/8 | 10 | - | - | 3/4-16 | 3 |
| LL4KP26 | ML4KP26 | 1/2 | 12.5 | 1/2-14 | - | - | 3 |
| LL4KP26BS | ML4KP26BS | 1/2 | 12.5 | - | 1/2-14 | - | 3 |
| LL4KP10 | - | 1/2 | 12.5 | - | - | 7/8-14 | 3 |
| LL6KP31 | ML6KP31 | 3/4 | 20 | 3/4-14 | - | - | 3 |
| LL6KP31BS | ML6KP31BS | 3/4 | 20 | - | 3/4-14 | - | 3 |
| LL6KP12 | - | 3/4 | 20 | - | - | 1 1/16-12 | 3 |
| LL8KP36 | ML8KP36 | 1 | 25 | 1-11 1/2 | - | - | 3 |
| LL8KP36BS | ML8KP36BS | 1 | 25 | - | 1-11 | - | 3 |
| LL8KP16 | - | 1 | 25 | - | - | 1 5/16-12 | 3 |
* For questions related to vacuum please contact us. ** No ISO Standard available for the 10HK
- • Self-sealing poppet valves provide excellent high and low pressure sealing
- Standard body material: 303 or 316 Stainless Steel

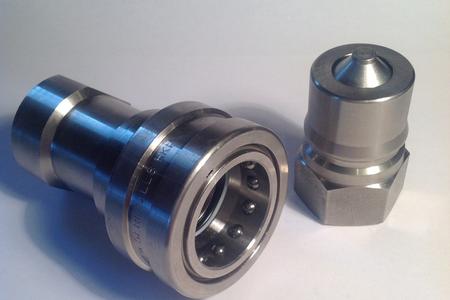

The Hansen HK Series stainless steel is a general purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316 grades of stainless steel for excellent corrosion resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.
| Part Number 303 Stainless Steel |
Part Number 316 Stainless Steel |
Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | |||||
| LL1H11 | ML1H11 | 1/8 | 5 | 1/8-27 | - | - | 1 |
| LL1H4 | - | 1/8 | 5 | - | - | 7/16-20 | 1 |
| LL2H16 | ML2H16 | 1/4 | 6.3 | 1/4-18 | - | - | 1 |
| LL2H16BS | ML2H16BS | 1/4 | 6.3 | - | 1/4-19 | - | 1 |
| LL2H6 | - | 1/4 | 6.3 | - | - | 9/16-8 | 1 |
| LL3H21 | ML3H21 | 3/8 | 10 | 3/8-18 | - | - | 1 |
| LL3H21BS | ML3H21BS | 3/8 | 10 | - | 3/8-19 | - | 1 |
| LL3H8 | - | 3/8 | 10 | - | - | 3/4-16 | 1 |
| LL4HP26 | ML4HP26 | 1/2 | 12.5 | 1/2-14 | - | - | 1 |
| LL4HP26BS | ML4HP26BS | 1/2 | 12.5 | - | 1/2-14 | - | 1 |
| LL4HP10 | - | 1/2 | 12.5 | - | - | 7/8-14 | 1 |
| LL6HP31 | ML6HP31 | 3/4 | 20 | 3/4-14 | - | - | 1 |
| LL6HP31BS | ML6HP31BS | 3/4 | 20 | - | 3/4-14 | - | 1 |
| LL6HP12 | - | 3/4 | 20 | - | - | 1 1/8-12 | 1 |
| LL8HP36 | ML8HP36 | 1 | 25 | 1-11 1/2 | - | - | 1 |
| LL8HP36BS | ML8HP36BS | 1 | 25 | - | 1-11 | - | 1 |
| LL8HP16 | - | 1 | 25 | - | - | 1 5/16-12 | 1 |
* ISO 7241-1 Series B does not include 1-¼ inch body size couplings; therefore, Series 10HK is not covered by this standard

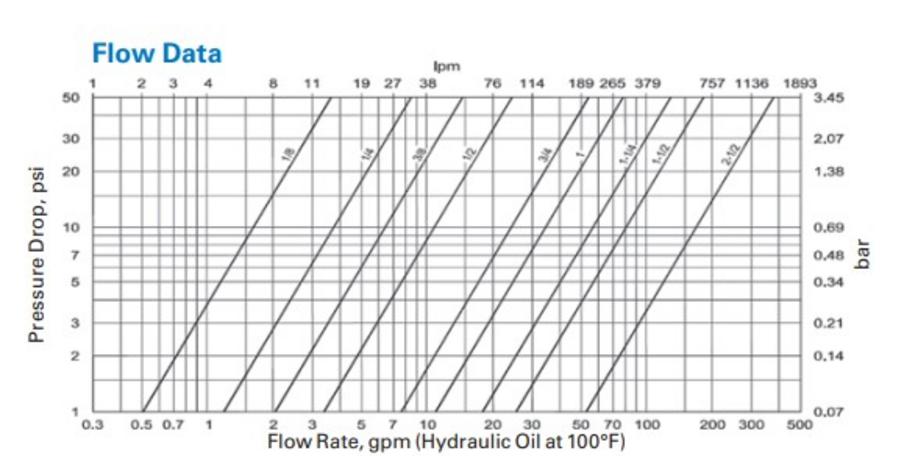

| Part Number | Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | ||
|---|---|---|---|---|---|---|
| NPTF | BSPP | SAE | ||||
| LL10K41* | 1 1/4 | - | 1 1/4-11 1/2 | - | - | 4 |
| LL10K41BS* | 1 1/4 | - | - | 1 1/4-11 | - | 4 |
| LL12K41 | 1 1/2 | 40 | 1 1/4-11 1/2 | - | - | 4 |
| LL12K41BS | 1 1/2 | 40 | - | 1 1/4-11 | - | 4 |
| LL12K46 | 1 1/2 | 40 | 1 1/2-11 1/2 | - | - | 4 |
| LL12K46BS | 1 1/2 | 40 | - | 1 1/2-11 | - | 4 |
| LL20K51 | 2 1/2 | 50 | 2-11 1/2 | - | - | 4 |
| LL20K51BS | 2 1/2 | 50 | - | 2-11 | - | 4 |
| LL20K56 | 2 1/2 | 50 | 2 1/2-8 | - | - | 4 |
| LL20K56BS | 2 1/2 | 50 | - | 2 1/2-11 | - | 4 |
| LL20K61 | 2 1/2 | 50 | 3-8 | - | - | 4 |
| LL20K61BS | 2 1/2 | 50 | - | 3-11 | - | 2 |
| Series | Body Size | ISO Size | Nominal Flow Size | Max Operating Pressure | Rated Flow | Air Inclusion | Fluid Loss |
|---|---|---|---|---|---|---|---|
| (in) | (mm) | (mm) | (PSI) | (GPM) | (cc max) | (cc max) | |
| 1HK | 1/8 | 5 | 4.4 | 4000 | .8 | .6 | .5 |
| 2HK | 1/4 | 6.3 | 5.9 | 5000 | 3 | 1.2 | .9 |
| 3HK | 3/8 | 10 | 7.8 | 4000 | 6 | 2.9 | 2.1 |
| 4HK | 1/2 | 12.5 | 10 | 5000 | 12 | 3.6 | 3.5 |
| 6HK | 3/4 | 20 | 17 | 4000 | 26 | 11.5 | 9.3 |
| 8HK | 1 | 25 | 19.6 | 4000 | 50 | 18 | 16.9 |
| 10HK | 1 1/4** | - | 26.7 | 1700 | 76 | 48 | 48 |
| 12HK | 1 1/2 | 40 | 35.1 | 2200 | 99 | 91.3 | 91.3 |
| 20HK | 2 1/2 | 50 | 46 | 1500 | 200 | 209.9 | 209.9 |
| Part Number 303 Stainless Steel |
Body Size (Inch) | ISO Size (mm) | Thread Size | Figure | |
|---|---|---|---|---|---|
| NPTF | BSPP | ||||
| LL10H41* | 1 1/4 | - | 1 1/4-11 1/2 | - | 2 |
| LL10H41BS* | 1 1/4 | - | - | 1 1/4-11 | 2 |
| LL12H41 | 1 1/2 | 40 | 1 1/4-11 1/2 | - | 2 |
| LL12H41BS | 1 1/2 | 40 | - | 1 1/4-11 | 2 |
| LL12H46 | 1 1/2 | 40 | 1 1/2-11 1/2 | - | 2 |
| LL12H46BS | 1 1/2 | 40 | - | 1 1/2-11 | 2 |
| LL20H51 | 2 1/2 | 50 | 2-11 1/2 | - | 2 |
| LL20H51BS | 2 1/2 | 50 | - | 2-11 | 2 |
| LL20H56 | 2 1/2 | 50 | 2 1/2-8 | - | 2 |
| LL20H56BS | 2 1/2 | 50 | - | 2 1/2-11 | 2 |
| LL20H61 | 2 1/2 | 50 | 3-8 | - | 2 |
| LL20H61BS | 2 1/2 | 50 | - | 3-11 | 2 |
Figure 2
Figure 3
- Meets dimensional requirements to ISO standard 7241-1 Series B
- 303/316 Stainless steel construction for greater corrosion resistance and fluid compatibility
| Seal Elastomer | Max Operating Temperature |
|---|---|
| Buna-N | -40°C to 121°C / 40°F to 150°F |
| Neoprene | -54°C to 100°C / -65°F to 212°F |
| EPDM (Ethelene Propylene Rubber) | -54°C to 149°C / -65°F to 300°F |
| FKM (Viton) | -29°C to 204°C / -15°F to 400°F |

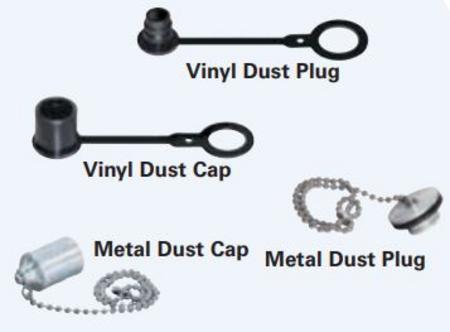

| COUPLING SERIES | METAL PLUG DUST CAP | VINYL PLUG DUST CAP | METAL SOCKET DUST CAP | VINYL SOCKET DUST CAP |
|---|---|---|---|---|
| 1HK | PDC1HK* | PPDC1HK | SDC1HK* | PSDC1HK |
| 2HK | PDC2HK* | PPDC2HK | SDC2HK* | PSDC2HK |
| 3HK | PDC3HK* | PPDC3HK | SDC3HK* | PSDC3HK |
| 4HK | PDC4HK** | PPDC4HK PPDC4HKRD |
SDC4HK** | PSDC4HK PSDC4HKRD |
| 6HK | PDC6HK** | PPDC6HK PPDC6HKRD |
SDC6HK** | PSDC6HK PSDC6HKRD |
| 8HK | PDC8HK** | PPDC8HK PPDC8HKRD |
SDC8HK** | PSDC8HK PSDC8HKRD |
| 12HK | PDC12HK* | - | SDC12HK* | - |
| 20HK | PDC20HK* | - | SDC20HK* | - |
Physical Characteristics
* ISO 7241-1 Series B does not include 1-¼ inch body size couplings; therefore, Series 10HK is not covered by this standard

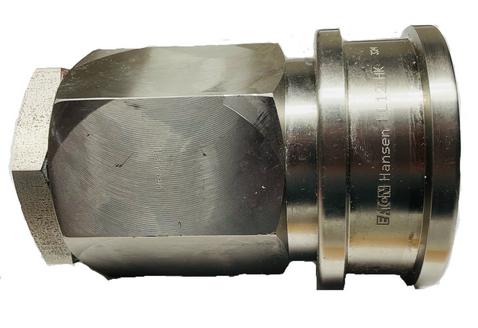

Figure 2
Applications & Markets

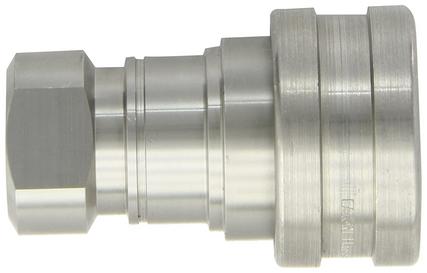

Figure 1
- Standard seal material: Buna-N
- Seal options available in PTFE, Neoprene, FKM, EPDM, and Kalrez
- Optional Sleeve Lock
Figure 3
• Agriculture
• Hydraulic Tool
• General Industry
• Construction
• Fluid Transfer
• Transportation
• Military
• Law Enforcement/Rescue
• Chemical
• Oil and Gas
• Consumer Products
• HVAC
• Food and Beverage
• Trucks
• Aerospace
• Medical

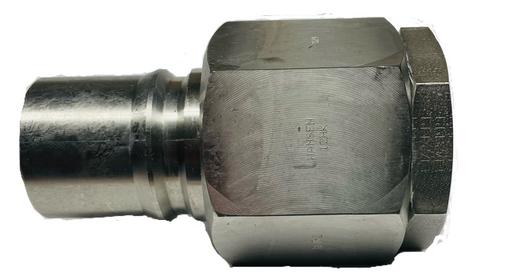

Figure 4
*Brass **Aluminum ***Offered in red by adding RD to end of part number
Product Features
Figure 1
