Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.

  • All sizes accept US industrial interchange" 1/4" & 1/2" also accept ISO 6150 series B  and A-A-59439 plugs/males
  • Optional sleeve lock prevents accidental disconnection
Part Number Coupling Type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)

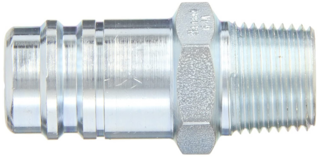

64A Plug 3/4 1/2 1/2-14 NPT Steel 2 2.31 1.15 1 58.67 29.21 25.40
64GA† Plug 3/4
 1/2 1/2-14 NPT Steel 2 3.26 1.12 1 82.80 28.45 25.40
66AE Plug 3/4
 3/4 3/4-14 NPT Steel 2 2.38 1.23 1.06 60.45 31.24 26.92
66GA† Plug 3/4
 3/4 3/4-14 NPT Steel 2 3.26 1.19 1.06 82.82 30.23 26.92
68A Plug 3/4
 1 1-11 1/2 NPT Steel 2 2.56 1.51 1.31 65.02 38.35 33.27
B64A Plug 3/4
 1/2 1/2-14 NPT Brass 2 2.31 1.12 1 58.67 28.45 25.40
B66A Plug 3/4
 3/4 3/4-14 NPT Brass 2 2.38 1.18 1.06 60.45 30.07 26.92

†With Bleeder Ball Check-Reduces Hose Whip

†With Bleeder Ball Check-Reduces Hose Whip

*Brass

Hose Stem End Connections

Part Number Coupling Type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)

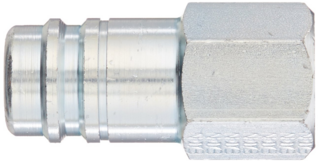

65A Plug/Male 3/4 1/2 1/2-14 NPTF Steel 4 2.85 1.90 1.31 72.39 48.26 33.27
65GAS† Plug/Male 3/4 3/4 1/2-14 NPTF Steel 4 3.35 1.12 1 85.09 28.45 25.40
67A Plug/Male 3/4 3/4 3/4-14 NPTF Steel 4 2.22 1.33 1.19 56.39 33.78 30.23
67GAS† Plug/Male 3/4 3/4 3/4-14 NPTF Steel 4 3.38 1.33 1.19 85.85 33.78 30.23
69A Plug/Male 3/4 1 1/11 1/2 NPTF Steel 4 2.41 1.80 1.56 61.21 45.72 39.62

Figure 3

All Sizes 1/4" & 1/2"
US

Industrial Interchange		 ISO 6150 Series B
A-A-59439

(former MIL-C-4109)
Part Number Coupling Type Body Size Hose I.D. Material Fig A B A B
(in) (in (mm) (mm)

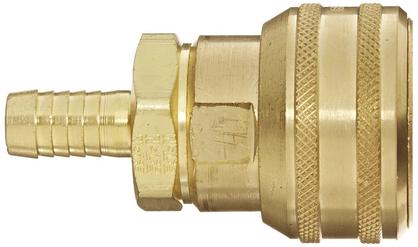

6800E Socket 3/4 1/2 Brass 5 3.21 1.88 81.53 47.75
6900 Socket 3/4 3/4 Brass 5 4.06 1.88 103.12 47.75
7000E Socket 3/4 1 Brass 5 4.07 1.88 103.38 47.75

Physical Characteristics

Eatons Hansen 6000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings Hansen 6000 Series

Figure 5

†With Bleeder Ball Check-Reduces Hose Whip

Figure 6

Male End Connections

Part Number Coupling Type Body Size Hose I.D. Material Fig A B A B
(in) (in) (mm) (mm)

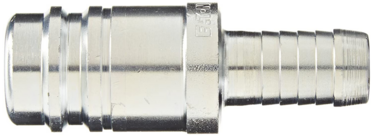

70A Plug/Male 3/4 1/2 Steel 6 2.53 .94 64.26 23.88
70GA† Plug 3/4 1/2 Steel 6 3.53 1.12 89.66 28.45
71A Plug 3/4 3/4 Steel 6 3.44 1.06 87.38 26.92
71GA† Plug 3/4 3/4 Steel 6 4.38 1.12 111.25 28.45
72A Plug 3/4 1 Steel 6 3.44 1.31 87.38 33.27
B71A Plug 3/4 3/4 Brass 6 3.44 1.06 87.38 26.92

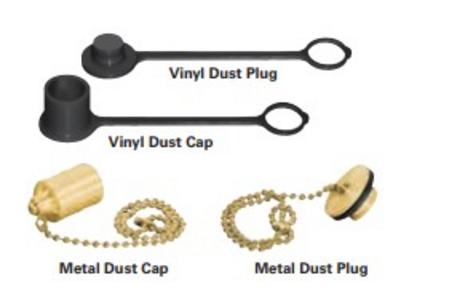

Series Dust Cap
Metal
Dust Cap
Vinyl		 Dust Plug
Metal		 Dust Plug
Vinyl
3000 PDC3000* - SDC3000* PSDC1HK
4000 - - - PSDC2HK
5000 - PPDC2HK - -
6000 - PPDC3HK - -
  • Standard body material: Brass
  • Standard seal material: Buna-N
  • Optional Seal and valve materials: Sillicone-138, FKM-143, EDM-192

Product Features

Figure 1

Figure 4

Part Number Coupling Type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)

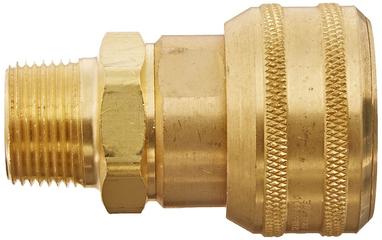

6300 Socket 3/4 1/2 1/2-14 NPT Brass 1 2.94 1.90 1.31 74.68 48.26 33.27
6500 Socket 3/4 3/4 3/4-14 NPT Brass 1 2.94 1.90 1.31 74.68 48.26 33.27
6700E Socket 3/4 1 1-11 1/2 NPT Brass 1 3.13 1.90 1.31 79.50 48.26 33.27

Applications & Markets

Female End Connections

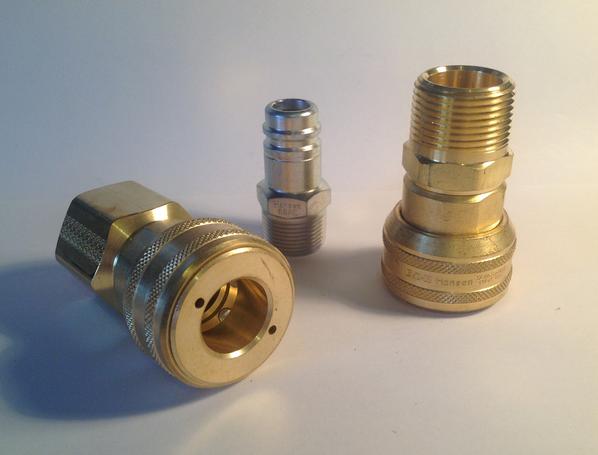

Danfoss Hansen 6000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings

Part Number Coupling type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)

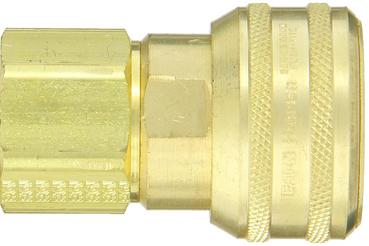

6200E Socket 3/4 1/2 1/2-14 NPT Brass 3 2.85 1.90 1.31 72.39 48.26 33.27
6400E Socket 3/4 3/4 3/4-14 NPT Brass 3 3 1.90 1.31 76.20 48.26 33.27
6600E Socket 3/4 1 1-11 1/2 NPT Brass 3 3.19 1.90 1.56 81.03 48.26 39.62

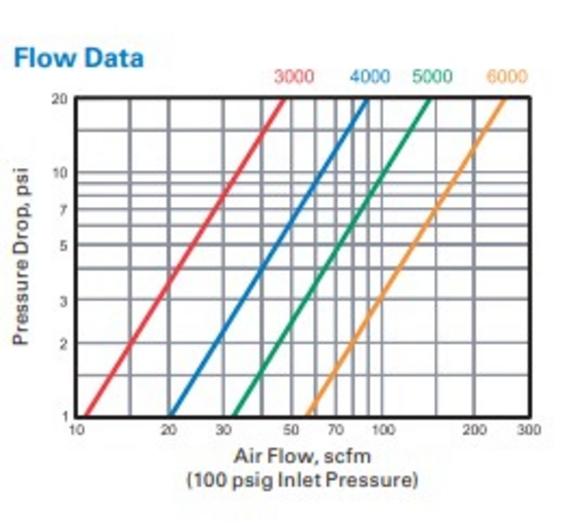

Series Body Size Max Operating Pressure Min Burst Pressure Rated Flow
6000 3/4 15(bar) 220(psi) 60(bar) 880(psi) 3540(lpm) 125(scfm)
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer

Figure 2

  • Easy automatic, push to connect design provides instantaneous connection or disconnection of lines, plus automatic shut off of socket/female end of line
