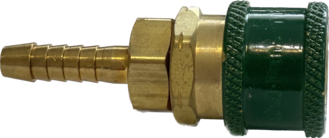

Hose Stem End Connections
§ For use with push-on style hose
* Without Sleeve Lock
Figure 1
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| 00A | - | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 2 | 1.22 | 0.63 | 0.56 | 31.0 | 16.0 | 14.2 |
| 02A | - | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 2 | 1.41 | 0.77 | 0.69 | 35.8 | 19.6 | 17.5 |
| 05R‡ | - | Plug | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 2 | 1.38 | 0.77 | 0.69 | 35.1 | 19.6 | 17.5 |
Figure 1
Physical Characteristics
† L.H. Thread - 30° Female Flare
* Without Sleeve Lock
Figure 1

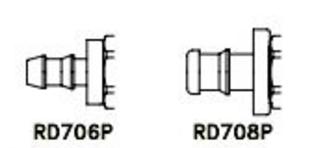

| Part Number | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Hose I.D. | Material | Figure | A | B | A | B |
| (in) | (in) | (mm) | (mm) | |||||||
| RD706 | RD706SL | Socket | 1/4 | 1/4 | Brass | 1 | 2.48 | 1.00 | 63.0 | 25.4 |
| RD706P§ | - | Socket | 1/4 | 1/4 | Brass | 1A | 2.25 | 1.00 | 57.2 | 25.4 |
| RD707 | RD707SL | Socket | 1/4 | 5/16 | Brass | 1 | 2.48 | 1.00 | 63.0 | 25.4 |
| RD708 | RD708SL | Socket | 1/4 | 3/8 | Brass | 1 | 2.48 | 1.00 | 63.0 | 25.4 |
| RD708P | - | Socket | 1/4 | 3/8 | Brass | 1A | 2.32 | 1.00 | 58.9 | 25.4 |
- Color coded sleeves for easy identification : - 600 Green, -700 Red
- Designed for use with compressed air and other gases
Figure 1
Figure 2
Applications & Markets
Product Features
| Part Number | Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Hose I.D. | Material | Figure | A | B | A | B |
| (in) | (in) | (mm) | (mm) | |||||||
| GR606 | GR606SL | Socket | 1/4 | 1/4 | Brass | 1 | 2.47 | 1.00 | 62.74 | 25.40 |
| GR606P§ | GR606PSL§ | Socket | 1/4 | 1/4 | Brass | 1, 1A | 2.24 | 1.00 | 56.90 | 25.40 |
| GR607 | GR607SL | Socket | 1/4 | 5/16 | Brass | 1 | 2.47 | 1.00 | 62.74 | 25.40 |
| GR608 | GR608SL | Socket | 1/4 | 3/8 | Brass | 1 | 2.47 | 1.00 | 62.74 | 25.40 |
| GR608P§ | - | Socket | 1/4 | 3/8 | Brass | 1, 1A | 2.31 | 1.00 | 58.67 | 25.40 |

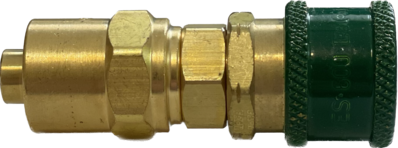

Hose Stem End Connections
† R.H. Thread - 30° Female Flare
* Without Sleeve Lock
Figure 1

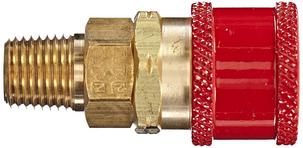

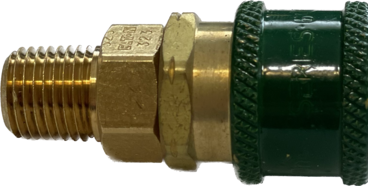

Male End Connections

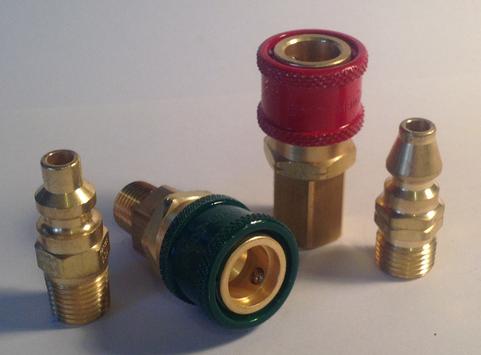

Hansen 600/700 Series Quick Dissconnect Couplings are designed for use in oxyacetylene service. The 600/700 series can also be used with compressed air and other gases

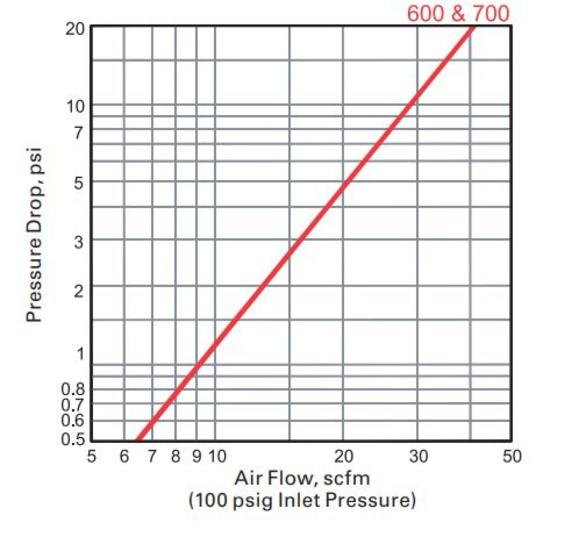

Flow Data
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| GR601 | GR601SL | Socket | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 1 | 1.84 | 1.00 | 0.69 | 46.7 | 25.4 | 17.5 |
| GR603 | GR603SL | Socket | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 1 | 2.03 | 1.00 | 0.69 | 51.6 | 25.4 | 17.5 |
| GR604R† | GR604RSL | Socket | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 1 | 1.92 | 1.00 | 0.69 | 48.8 | 25.4 | 17.5 |
| GR605 | GR605SL | Socket | 1/4 | 3/8 | 3/8-18 | NPT | Brass | 1 | 1.99 | 1.00 | 0.69 | 50.5 | 25.4 | 17.5 |
‡ R.H. Thread - 30° Female Flare
* Without Sleeve Lock
Figure 1
* Without Sleeve Lock
Figure 2
- Breathing Equipment
- Welding
- Shipyards
- General Pneumatics
- Construction
- Nitrous Oxide
Figure 2
- Safety sleeve lock prevents accidental disconnections
- Non-Interchangeable design prevents crossing of lines
Figure 2
Figure 2
* Series 600 and 700 couplings with sleeve lock feature comply with O.S.H.A requirements , Sec. 1915.35(f)(5), 1916.35 (f)(5), and 1926.350 (f)(5)

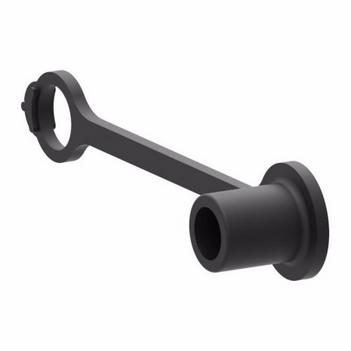

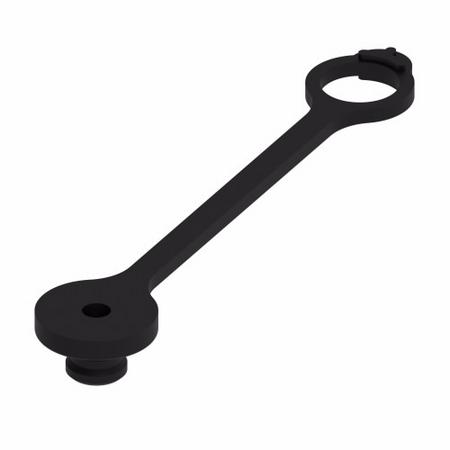

Dust Caps and Dust Plugs

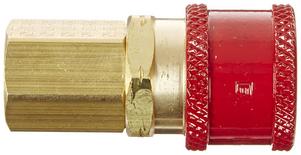

Female End Connections

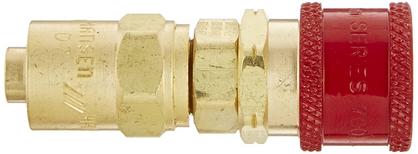

700 Series

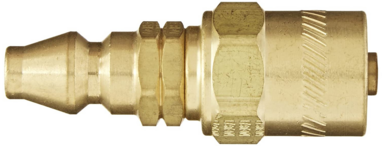

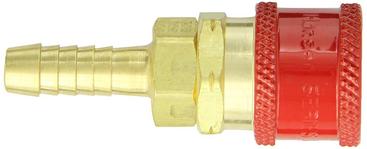

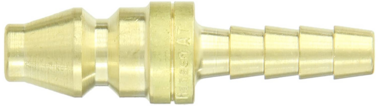

Hose Clamp End Connections
† L.H. Thread - 30° Female Flare
* Without Sleeve Lock
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| GR600 | GR600SL | Socket | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 1 | 1.73 | 1.00 | 0.69 | 43.9 | 25.4 | 17.5 |
| GR602 | GR602SL | Socket | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 1 | 1.95 | 1.00 | 0.69 | 49.5 | 25.4 | 17.5 |
| GR604 | GR604SL | Socket | 1/4 | 3/8 | 3/8-18 | NPT | Brass | 1 | 2.03 | 1.00 | 0.69 | 49.5 | 25.4 | 17.5 |
| GR605R‡ | GR605RSL | Socket | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 1 | 1.95 | 1.00 | 0.69 | 49.5 | 25.4 | 17.5 |
Figure 2
Figure 2
| Part Number | Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Hose I.D. | Hose O.D | Material | Figure | A | B | Hex | A | B | Hex |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||||
| GR60B3 | GR60B3SL | Socket | 1/4 | 1/4 | 1/2 | Brass | 1 | 2.56 | 1.00 | 0.63 | 65.0 | 25.4 | 16.0 |
| GR60B5 | GR60B5SL | Socket | 1/4 | 1/4 | 9/16 | Brass | 1 | 2.56 | 1.00 | 0.69 | 65.0 | 25.4 | 17.5 |
| GR60B7 | GR60B7SL | Socket | 1/4 | 1/4 | 5/8 | Brass | 1 | 2.56 | 1.00 | 0.75 | 65.0 | 25.4 | 19.1 |
| GR60C5 | - | Socket | 1/4 | 5/16 | 9/16 | Brass | 1 | 2.62 | 1.00 | 0.69 | 66.5 | 25.4 | 17.5 |
| GR60D7 | - | Socket | 1/4 | 3/8 | 5/8 | Brass | 1 | 2.68 | 1.00 | 0.75 | 68.1 | 25.4 | 19.1 |
| GR60D9 | - | Socket | 1/4 | 3/8 | 11/16 | Brass | 1 | 2.68 | 1.00 | 0.81 | 68.1 | 25.4 | 20.6 |
| GR60D11 | - | Socket | 1/4 | 3/8 | 3/4 | Brass | 1 | 2.68 | 1.00 | 0.88 | 68.1 | 25.4 | 22.4 |
§ For use with push-on style hose
* Without Sleeve Lock
Figure 1A
Figure 1
| Part Number | Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Hose I.D. | Hose O.D | Material | Figure | A | B | Hex | A | B | Hex |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||||
| RD70B3 | RD70B3SL | Socket | 1/4 | 1/4 | 1/2 | Brass | 1 | 2.57 | 1.00 | 0.63 | 65.3 | 25.4 | 16.0 |
| RD70B7 | - | Socket | 1/4 | 1/4 | 5/8 | Brass | 1 | 2.57 | 1.00 | 0.75 | 65.3 | 25.4 | 19.1 |
| RD70D7 | - | Socket | 1/4 | 3/8 | 5/8 | Brass | 1 | 2.69 | 1.00 | 0.75 | 68.3 | 25.4 | 1.1 |
| RD70D9 | - | Socket | 1/4 | 3/8 | 11/16 | Brass | 1 | 2.69 | 1.00 | 0.81 | 68.3 | 25.4 | 20.6 |
| Series | Body Size | Max Operating Pressure | Min Burst Pressure | Rated flow | |||
|---|---|---|---|---|---|---|---|
| (in) | (bar) | (psi) | (bar) | (psi) | (lpm) | (scfm) | |
| 600 & 700 | 1/4 | 103 | 1500 | 412 | 6000 | 595 | 21 |
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| A1 | - | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 2 | 1.47 | 0.63 | 0.56 | 37.3 | 16.0 | 14.2 |
| A3P | - | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 2 | 1.63 | 0.63 | 0.56 | 41.4 | 16.0 | 14.2 |
| A4L† | - | Plug | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 2 | 1.50 | 0.63 | 0.56 | 38.1 | 16.0 | 14.2 |
| Part Number | Dimensions | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Hose I.D. | Hose O.D | Material | Figure | A | B | Hex | A | B | Hex |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | ||||||||
| 6B3 | - | Plug | 1/4 | 1/4 | 1/2 | Brass | 2 | 2.13 | 0.70 | 0.63 | 54.1 | 17.8 | 16.0 |
| 6B5 | - | Plug | 1/4 | 1/4 | 9/16 | Brass | 2 | 2.13 | 0.77 | 0.69 | 54.1 | 19.6 | 17.5 |
| 6B7 | - | Plug | 1/4 | 1/4 | 5/8 | Brass | 2 | 2.13 | 0.84 | 0.75 | 54.1 | 21.3 | 19.1 |
| 6D7 | - | Plug | 1/4 | 3/8 | 5/8 | Brass | 2 | 2.25 | 0.84 | 0.75 | 57.2 | 21.3 | 19.1 |
| 6D9 | - | Plug | 1/4 | 3/8 | 11/16 | Brass | 2 | 2.25 | 0.91 | 0.81 | 57.2 | 23.1 | 20.6 |
| 6D11 | - | Plug | 1/4 | 3/8 | 3/4 | Brass | 2 | 2.25 | 0.98 | 0.88 | 57.2 | 24.9 | 22.4 |
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| 01A | - | Plug | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 2 | 1.41 | 0.63 | 0.56 | 35.8 | 16.0 | 14.2 |
| 03A | - | Plug | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 2 | 1.56 | 0.63 | 0.56 | 39.6 | 16.0 | 14.2 |
| 04R† | - | Plug | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 2 | 1.41 | 0.63 | 0.56 | 35.8 | 16.0 | 14.2 |
Figure 1A
Figure 1
! Series 600and 700 couplings with sleeve lockfeature comply with OSHA requirements,* which state couplings shall be a type that cannot be unlocked or disconnected by means of straight pull without rotary motion
600 Series
Male End Connections
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| RD701 | - | Socket | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 1 | 1.85 | 1.00 | 0.69 | 47.0 | 25.4 | 17.5 |
| RD703 | RD703SL | Socket | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 1 | 2.04 | 1.00 | 0.69 | 51.8 | 25.4 | 17.5 |
| RD704L† | RD704LSL | Socket | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 1 | 1.93 | 1.00 | 0.69 | 49.0 | 25.4 | 17.5 |
| RD705 | RD705SL | Socket | 1/4 | 3/8 | 3/8-18 | NPT | Brass | 1 | 2.00 | 1.00 | 0.69 | 50.8 | 25.4 | 17.5 |
Hose Clamp End Connections
| Part Number | Dimensions | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard* | Oxygen Service | Coupling Type | Body Size | Port Size | Thread | Type | Material | Figure | A | B | HEX | A | B | HEX |
| (in) | (in) | (in) | (mm) | (mm) | (mm) | |||||||||
| RD700 | RD700SL | Socket | 1/4 | 1/8 | 1/8-27 | NPT | Brass | 1 | 1.74 | 1.00 | 0.69 | 44.2 | 25.4 | 17.5 |
| RD702 | RD702SL | Socket | 1/4 | 1/4 | 1/4-18 | NPT | Brass | 1 | 1.96 | 1.00 | 0.69 | 49.8 | 25.4 | 17.5 |
| RD704 | RD704SL | Socket | 1/4 | 3/8 | 3/8-18 | NPT | Brass | 1 | 2.04 | 1.00 | 0.69 | 51.8 | 25.4 | 17.5 |
| RD705L‡ | RD705LSL | Socket | 1/4 | 9/16 | 9/16-18 | UNF | Brass | 1 | 1.96 | 1.00 | 0.69 | 49.8 | 25.4 | 17.5 |
- OSHA Compliant
- Standard body material: Brass
- Standard seal material: Buna-N
* Without Sleeve Lock
Figure 2
- Series 600 Couplings are not to be used with oxygen at pressures exceeding 100 psig
- Series 700 couplings are not to be used with acetylene at pressures exceeding 15 psig

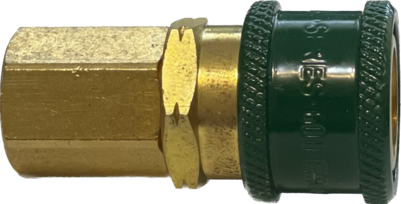

Female End Connections
