Figure 1
- Hydraulic fluid transfer
- Agricultural equipment
- Construction equipment
- Dump, snow plow and maintenance vehicles
- In-plant manufacturing
| Part Number | Body Size |
|---|---|
| (in) | |
| 5657-4 | 1/4 |
| 5657-6 | 3/8 |
| 5657-10 | 5/8 |
| 5657-12 | 3/4 |
| 5657-16 | 1 |
Figure 2

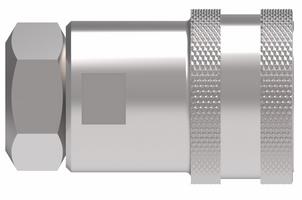

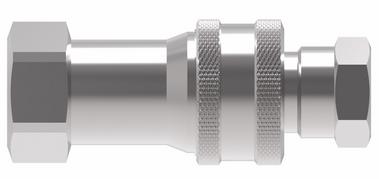

Female NPT, Valved
Product Features

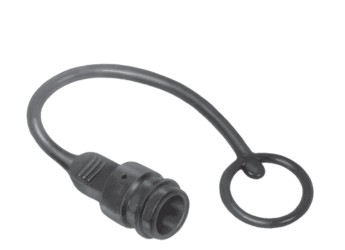

Dust Plugs
Female , SAE O-Ring Valved with Sleeve Lock
Figure 5
| Part Number Buna-N |
Part Number FKM |
Part Number EPDM |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| FD56-1037-04-04 | FD56-1037-04-04 | FD56-1037-04-04 | Plug* | 1/4 | 1/4 | 1/4-18 | Female NPT | 1 | 31.5 | 1.24 | - | - | 19.1 | 0.75 |
| FD56-1225-04-04 | FD56-1207-04-04 | FD56-1204-04-04 | Socket | 1/4 | 1/4 | 1/4-18 | Female NPT | 2 | 46 | 1.81 | 27.4 | 1.08 | 22.4 | 0.88 |
| FD56-1226-04-04 | FD56-1208-04-04 | FD56-1205-04-04 | Complete* | 1/4 | 1/4 | 1/4-18 | Female NPT | 3 | 63.2 | 2.49 | - | - | - | - |
| FD56-1037-06-06 | FD56-1037-06-06 | FD56-1037-06-06 | Plug* | 3/8 | 3/8 | 3/8-18 | Female NPT | 1 | 35.6 | 1.40 | - | - | 22.4 | .88 |
| FD56-1225-06-06 | FD56-1207-06-06 | FD56-1204-06-06 | Socket | 3/8 | 3/8 | 3/8-18 | Female NPT | 2 | 54.6 | 2.15 | 31.2 | 1.23 | 25.4 | 1.00 |
| FD56-1226-06-06 | FD56-1208-06-06 | FD56-1205-06-06 | Complete* | 3/8 | 3/8 | 3/8-18 | Female NPT | 3 | 7.11 | 2.80 | - | - | - | - |
| FD56-1037-08-10 | FD56-1037-08-10 | FD56-1037-08-10 | Plug/* | 5/8 | 1/2 | 1/2-14 | Female NPT | 1 | 48 | 1.89 | - | - | 26.9 | 1.06 |
| FD56-1225-08-10 | FD56-1207-08-10 | FD56-1204-08-10 | Socket | 5/8 | 1/2 | 1/2-14 | Female NPT | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| FD56-1226-08-10 | FD56-1208-08-10 | FD56-1205-08-10 | Complete* | 5/8 | 1/2 | 1/2-14 | Female NPT | 3 | 96 | 3.78 | - | - | - | - |
| FD56-1037-12-12 | FD56-1037-12-12 | FD56-1037-12-12 | Plug* | 3/4 | 3/4 | 3/4-14 | Female NPT | 1 | 57.9 | 2.28 | - | - | - | - |
| FD56-1225-12-12 | FD56-1207-12-12 | FD56-1204-12-12 | Socket | 3/4 | 3/4 | 3/4-14 | Female NPT | 2 | 82.6 | 3.25 | 46.0 | 1.81 | 38.1 | 1.50 |
| FD56-1226-12-12 | FD56-1208-12-12 | FD56-1205-12-12 | Complete* | 3/4 | 3/4 | 3/4-14 | Female NPT | 3 | 113.3 | 4.46 | - | - | - | - |
| FD56-1037-16-16 | FD56-1037-16-16 | FD56-1037-16-16 | Plug* | 1 | 1 | 1-11 1/2 | Female NPT | 1 | 70.4 | 2.77 | - | - | 4.11 | 1.62 |
| FD56-1225-16-16 | FD56-1207-16-16 | FD56-1204-16-16 | Socket | 1 | 1 | 1-11 1/2 | Female NPT | 2 | 97 | 3.82 | 53.3 | 2.10 | 42.9 | 1.69 |
| FD56-1226-16-16 | FD56-1208-16-16 | FD56-1205-16-16 | Complete* | 1 | 1 | 1-11 1/2 | Female NPT | 3 | 140.7 | 5.54 | - | - | - | - |
| Part Number Buna-N |
Part Number FKM |
Part Number EPDM |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| FD56-1125-04-04 | FD56-1125-04-04 | FD56-1125-04-04 | Plug* | 1/4 | 1/4 | 1/4-18 | Female NPT | 1 | 31.5 | 1.24 | - | - | 19 | 0.75 |
| FD56-1123-04-04 | FD56-1201-04-04 | FD56-1196-04-04 | Socket | 1/4 | 1/4 | 1/4-18 | Female NPT | 2 | 46 | 1.81 | 27.4 | 1.08 | 22.4 | 0.88 |
| FD56-1125-06-06 | FD56-1125-06-06 | FD56-1125-06-06 | Plug* | 3/8 | 3/8 | 3/8-18 | Female NPT | 1 | 35.6 | 1.40 | - | - | 22.4 | 0.88 |
| FD56-1123-06-06 | FD56-1201-06-06 | FD56-1196-06-06 | Socket | 3/8 | 3/8 | 3/8-18 | Female NPT | 2 | 54.6 | 2.15 | 31.2 | 1.23 | 25.4 | 1.00 |
| FD56-1125-08-10 | FD56-1125-08-10 | FD56-1125-08-10 | Plug* | 5/8 | 1/2 | 1/2-14 | Female NPT | 1 | 48 | 1.89 | - | - | 26.9 | 1.06 |
| FD56-1123-08-10 | FD56-1201-08-10 | FD56-1196-08-10 | Socket | 5/8 | 1/2 | 1/2-14 | Female NPT | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| FD56-1125-12-12 | FD56-1125-12-12 | FD56-1125-12-12 | Plug* | 3/4 | 3/4 | 3/4-14 | Female NPT | 1 | 57.9 | 2.28 | - | - | 35.1 | 1.38 |
| FD56-1123-12-12 | FD56-1201-12-12 | FD56-1196-12-12 | Socket | 3/4 | 3/4 | 3/4-14 | Female NPT | 2 | 82.6 | 3.25 | 46 | 1.81 | 38.1 | 1.50 |
| FD56-1125-16-16 | FD56-1125-16-16 | FD56-1125-16-16 | Plug* | 1 | 1 | 1-11 1/2 | Female NPT | 1 | 70.4 | 2.77 | - | - | 41.1 | 1.62 |
| FD56-1123-16-16 | FD56-1201-16-16 | FD56-1196-16-16 | Socket | 1 | 1 | 1-11 1/2 | Female NPT | 2 | 97 | 3.82 | 53.3 | 2.10 | 42.9 | 1.69 |
Phone 770-887-0470
Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.

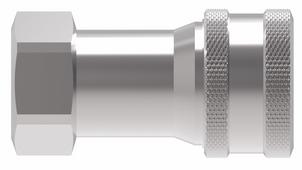

Plug Half, Female BSP/Valved
| Part Number Buna-N |
Body Size | Thread | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | ||||
| G5622-4-4 | 1/4 | G 1/4 | 2 | 1.81 | 46 | 1.04 | 26.3 | 0.87 | 22 |
| G5622-6-6 | 3/8 | G 3/8 | 2 | 2.33 | 59.1 | 1.21 | 30.8 | 1.06 | 27 |
| G5622-8-10 | 5/8 | G 5/8 | 2 | 2.76 | 70 | 1.51 | 38.3 | 1.26 | 32 |
| G5622-12-12 | 3/4 | G 3/4 | 2 | 3.32 | 84.3 | 1.83 | 46.6 | 1.61 | 41 |
| G5622-16-16 | 1 | G 1 | 2 | 4.07 | 103.5 | 2.15 | 54.6 | 1.97 | 50 |
Figure 1
- Meets dimensional requirements to ISO standard 7241-1Series A
- Self-sealing poppet valve provides excellent high and low pressure sealing
| Part Number Buna-N | Part Number FKM | Part Number EPDM | Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| 5602-4S | FD56-1062-02-04 | 5644-2-4S | Plug | 1/4 | 1/8 | 1/8-27 | Female NPT | 1 | 31.5 | 1.24 | - | - | 14.2 | .56 |
| 5601-2-4S | FD56-1064-02-04 | 5643-2-4S | Socket | 1/4 | 1/8 | 1/8-27 | Female NPT | 2 | 46 | 1.81 | 27.4 | 1.08 | 22.4 | .88 |
| 5600-2-4S | FD56-1065-02-04 | 5642-2-4S | Complete | 1/4 | 1/8 | 1/8-27 | Female NPT | 3 | 61.5 | 2.42 | - | - | - | - |
| 5602-4-4S | FD56-1062-04-04 | 5644-4-4S | Plug | 1/4 | 1/4 | 1/4-18 | Female NPT | 1 | 33.3 | 1.31 | - | - | 19.1 | .75 |
| 5600-4-4S | FD56-1065-04-04 | 5642-4-4S | Complete | 1/4 | 1/4 | 1/4-18 | Female NPT | 3 | 63.2 | 2.49 | - | - | - | - |
| 5602-6-6S | FD56-1062-06-06 | 5644-6-6S | Plug | 3/8 | 3/8 | 3/8-18 | Female NPT | 1 | 37.3 | 1.47 | - | - | 22.4 | .88 |
| 5601-6-6S | FD56-1064-06-06 | 5643-6-6S | Socket | 3/8 | 3/8 | 3/8-18 | Female NPT | 2 | 54.6 | 2.15 | 31.2 | 1.23 | 25.4 | 1.00 |
| 5600-6-6S | FD56-1065-06-06 | 5642-6-6S | Complete | 3/8 | 3/8 | 3/8-18 | Female NPT | 3 | 71.1 | 2.80 | - | - | - | - |
| 5602-8-10S | FD56-1062-08-10 | 5644-8-10S | Plug | 5/8 | 1/2 | 1/2-14 | Female NPT | 1 | 51.3 | 2.02 | - | - | 26.9 | 1.06 |
| 5601-8-10S | FD56-1064-08-10 | 5643-8-10S | Socket | 5/8 | 1/2 | 1/2-14 | Female NPT | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| 5600-8-10S | FD56-1065-08-10 | 5642-8-10S | Complete | 5/8 | 1/2 | 1/2-14 | Female NPT | 3 | 96 | 3.78 | - | - | - | - |
| 5602-12-10S | FD56-1062-12-10 | 5644-12-10S | Plug | 5/8 | 3/4 | 3/4-14 | Female NPT | 1 | 54.9 | 2.16 | - | - | 35.1 | 1.38 |
| 5601-12-10S | FD56-1064-12-10 | 5643-12-10S | Socket | 5/8 | 3/4 | 3/4-14 | Female NPT | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 33.3 | 1.31 |
| 5600-12-10S | FD56-1065-12-10 | 5642-12-10S | Complete | 5/8 | 3/4 | 3/4-14 | Female NPT | 3 | 103.1 | 4.06 | - | - | - | - |
| 5602-12-12S | FD56-1062-12-12 | 5644-12-12S | Plug | 3/4 | 3/4 | 3/4-14 | Female NPT | 1 | 64.8 | 2.55 | - | - | 35.1 | 1.38 |
| 5601-12-12S | FD56-1064-12-12 | 5643-12-12S | Socket | 3/4 | 3/4 | 3/4-14 | Female NPT | 2 | 82.6 | 3.25 | 46 | 1.81 | 38.1 | 1.50 |
| 5600-12-12S | FD56-1065-12-12 | 5642-12-12S | Complete | 3/4 | 3/4 | 3/4-14 | Female NPT | 3 | 115.8 | 4.56 | - | - | - | - |
| 5602-16-16S | FD56-1062-16-16 | 5644-16-16S | Plug | 1 | 1 | 1-11 1/2 | Female NPT | 1 | 78.7 | 3.10 | - | - | 41.1 | 1.62 |
| 5601-16-16S | FD56-1064-16-16 | 5643-16-16S | Socket | 1 | 1 | 1-11 1/2 | Female NPT | 2 | 97 | 3.82 | 53.3 | 2.10 | 42.9 | 1.69 |
| 5600-16-16S | FD56-1065-16-16 | 5642-16-16S | Complete | 1 | 1 | 1-11 1/2 | Female NPT | 3 | 123.4 | 4.86 | - | - | - | - |
Socket Half, Female BSP/Valved
Figure 4
Applications & Markets
| Part Number | Body Size |
|---|---|
| (in) | |
| 5659-4 | 1/4 |
| 5659-6 | 3/8 |
| 5659-10 | 5/8 |
| 5659-12 | 3/4 |
| 5659-16 | 1 |
Figure 3

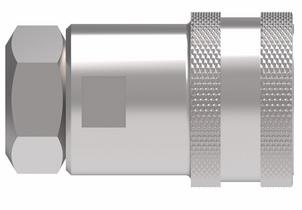

Female NPT, Valved with Sleeve Lock
Figure 2
Fax 706-265-1477
Dust Caps
Figure 3
| Part Number | Body Size |
|---|---|
| (in) | |
| 5603 | 5/8 |
Female , SAE O-Ring Valved

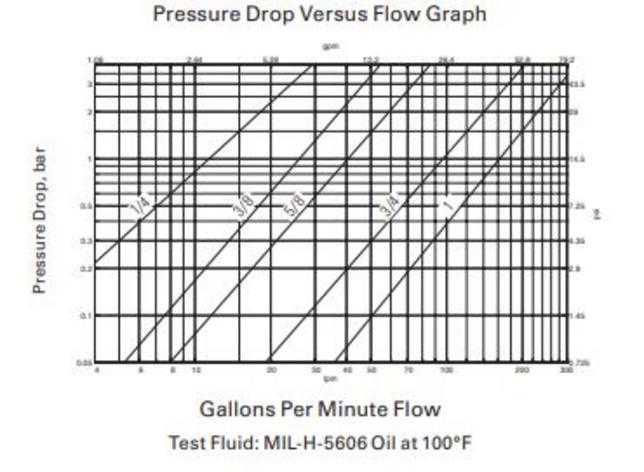

| Body Size | Max Operating Pressure | Min Burst Pressure | Vacuum Connected Only | Rated Flow | Air Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|---|
| (in) | (bar) | (psi) | (bar) | (psi) | (in/HG) | (lpm) | (gpm) | cc. max | cc. max |
| 1/4 | 350 | 5000 | 1050 | 15000 | 28 | 4 | 1 | 0.50 | 0.50 |
| 3/8 | 280 | 4000 | 840 | 12000 | 28 | 23 | 6 | 1.5 | 1.3 |
| 5/8 | 280 | 4000 | 840 | 12000 | 28 | 45 | 12 | 2.8 | 2.8 |
| 3/4 | 280 | 4000 | 840 | 12000 | 28 | 106 | 28 | 10 | 8.2 |
| 1 | 280 | 4000 | 840 | 12000 | 28 | 189 | 50 | 14.2 | 14.2 |
- Streamlined valving provides minimum pressure drop
- Standard seal materials: Buna-N, EPDM and FKM
| Part Number Buna N |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||
| FD56-1239-08-10 | Socket | 5/8 | 1/2 | 12-14 | Female NPT | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| FD56-1239-12-12 | Socket | 3/4 | 3/4 | 3/4-14 | Female NPT | 2 | 82.6 | 3.25 | 46.7 | 1.84 | 38.1 | 1.50 |
| FD56-1239-16-16 | Socket | 1 | 1 | 1-11 1/2 | Female NPT | 2 | 97 | 3.82 | 54.1 | 2.13 | 42.9 | 1.69 |

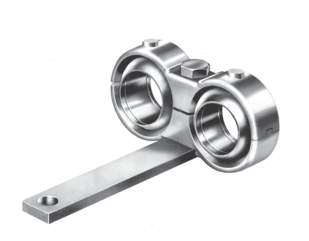

Break Away FRame
Figure 4
- Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in –04 size)
| Part Number Buna-N |
Body Size | Thread | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | ||||
| G5623-4-4 | 1/4 | G 1/4 | 1 | 1.25 | 31.8 | - | - | 0.75 | 19 |
| G5623-6-6 | 3/8 | G 3/8 | 1 | 1.63 | 41.5 | - | - | 0.87 | 22 |
| G5623-8-10 | 5/8 | G 5/8 | 1 | 1.88 | 47.7 | - | - | 1.06 | 27 |
| G5623-12-12 | 3/4 | G 3/4 | 1 | 2.28 | 58 | - | - | 1.42 | 36 |
| G5623-16-16 | 1 | G 1 | 1 | 2.76 | 70 | - | - | 1.61 | 41 |
Female NPT, Pusher-Style Valving
Toll Free 855-457-4474
Text 770-887-0470
NOTE: Will not operate with valved coupling halves; no valve actuator. *Male halves contain no seals.
Physical Characteristics

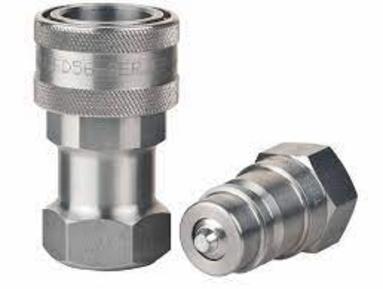

The Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.
Figure 5
| Part Number Buna-N |
Part Number FKM |
Part Number EPDM |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| 5602-8-10S | FD56-1062-08-10 | 5644-8-10S | Plug | 5/8 | 1/2 | 1/2-14 | Female NPT Valved | 1 | 51.3 | 2.02 | - | - | 26.9 | 1.06 |
| 5651-8-10S | FD56-1070-08-10 | 565007-8-10S | Socket | 5/8 | 1/2 | 1/2-14 | Female NPT | 4 | 7.32 | 2.88 | 38.1 | 1.50 | 26.9 | 1.06 |
| 5650-8-10S | FD56-1071-08-10 | 565006-8-10S | Complete | 5/8 | 1/2 | 1/2-14 | Female NPT | 5 | 98.8 | 3.89 | - | - | - | - |
| 5602-12-10S | FD56-1062-12-10 | 5644-12-10S | Plug | 5/8 | 3/4 | 3/4-14 | Female NPT Valved | 1 | 54.9 | 2.16 | - | - | 35.1 | 1.38 |
| 5651-12-10S | FD56-1070-12-10 | 565007-12-10S | Socket | 5/8 | 3/4 | 3/4-14 | Female NPT | 4 | 83.8 | 3.30 | 38.1 | 1.50 | 31.8 | 1.25 |
| 5650-12-10S | FD56-1071-12-10 | 565006-12-10S | Complete | 5/8 | 3/4 | 3/4-14 | Female NPT | 5 | 113 | 4.45 | - | - | - | - |
| Part Number Buna-N |
Part Number FKM |
Part Number EPDM |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| 5610-4-4S | FD56-1072-04-04 | 560078-4-4S | Plug | 1/4 | 7/16 | 7/16-20 | Female SAE O-Ring | 1 | 32.5 | 1.28 | - | - | 15.7 | .62 |
| 5608-4-4S | FD56-1074-04-04 | FD56-1012-4-4S | Socket | 1/4 | 7/16 | 7/16-20 | Female SAE O-Ring | 2 | 46 | 1.81 | 27.4 | 1.08 | 22.4 | .88 |
| 5606-4-4S | FD56-1075-04-04 | FD56-1009-4-4S | Complete | 1/4 | 7/16 | 7/16-20 | Female SAE O-Ring | 3 | 64.3 | 2.53 | - | - | - | - |
| 5610-6-6S | FD56-1072-06-06 | 560078-6-6S | Plug | 3/8 | 9/16 | 9/16-18 | Female SAE O-Ring | 1 | 38.1 | 1.50 | - | - | 22.4 | .88 |
| 5608-6-6S | FD56-1074-06-06 | FD56-1012-6-6S | Socket | 3/8 | 9/16 | 9/16-18 | Female SAE O-Ring | 2 | 54.6 | 2.15 | 31.2 | 1.23 | 25.4 | 1.00 |
| 5606-6-6S | FD56-1075-06-06 | FD56-1009-6-6S | Complete | 3/8 | 9/16 | 9/16-18 | Female SAE O-Ring | 3 | 72.1 | 2.84 | - | - | - | - |
| 5610-8-10S | FD56-1072-08-10 | 560078-8-10S | Plug | 5/8 | 3/4 | 3/4-16 | Female SAE O-Ring | 1 | 51.6 | 2.03 | - | - | 26.9 | 1.06 |
| 5608-8-10S | FD56-1074-08-10 | FD56-1012-8-10S | Socket | 5/8 | 3/4 | 3/4-16 | Female SAE O-Ring | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| 5606-8-10S | FD56-1075-08-10 | FD56-1009-8-10S | Complete | 5/8 | 3/4 | 3/4-16 | Female SAE O-Ring | 3 | 96 | 3.78 | - | - | - | - |
| 5610-10-10S | FD56-1072-10-10 | 560078-10-10S | Plug | 5/8 | 7/8 | 7/8-14 | Female SAE O-Ring | 1 | 52.8 | 2.08 | - | - | 28.4 | 1.12 |
| 5608-10-10S | FD56-1074-10-10 | FD56-1012-10-10S | Socket | 5/8 | 7/8 | 7/8-14 | Female SAE O-Ring | 2 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| 5606-10-10S | FD56-1075-10-10 | FD56-1009-10-10S | Complete | 5/8 | 7/8 | 7/8-14 | Female SAE O-Ring | 3 | 98.6 | 3.88 | - | - | - | - |
| 5610-12-12S | FD56-1072-12-12 | 560078-12-12S | Plug | 3/4 | 1 1/16 | 1 1/16-12 | Female SAE O-Ring | 1 | 64.8 | 2.55 | - | - | 35.1 | 1.38 |
| 5608-12-12S | FD56-1074-12-12 | FD56-1012-12-12S | Socket | 3/4 | 1 1/16 | 1 1/16-12 | Female SAE O-Ring | 2 | 82.6 | 3.25 | 46 | 1.81 | 38.1 | 1.50 |
| 5606-12-12S | FD56-1075-12-12 | FD56-1009-12-12S | Complete | 3/4 | 1 1/16 | 1 1/16-12 | Female SAE O-Ring | 3 | 115.8 | 4.56 | - | - | - | - |
| 5610-16-16S | FD56-1072-16-16 | 560078-16-16S | Plug | 1 | 1 5/16 | 1 5/16-12 | Female SAE O-Ring | 1 | 78.7 | 3.10 | - | - | 41.1 | 1.62 |
| 5608-16-16S | FD56-1074-16-16 | FD56-1012-16-16S | Socket | 1 | 1 5/16 | 1 5/16-12 | Female SAE O-Ring | 2 | 97.3 | 3.83 | 53.3 | 2.10 | 42.9 | 1.69 |
| 5606-16-16S | FD56-1075-16-16 | FD56-1009-16-16S | Complete | 1 | 1 5/16 | 1 5/16-12 | Female SAE O-Ring | 3 | 140.7 | 5.54 | - | - | - | - |
Figure 2
| Part Number Buna-N |
Part Number FKM |
Part Number EPDM |
Coupling Type | Body Size | Port Size | Thread | Type | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (mm) | (in) | (mm) | (in) | (mm) | (in) | |||||||||
| FD56-1270-06-06 | - | - | Socket | 3/8 | 9/16 | 9/16-18 | Female SAE O-Ring | 3 | 54.6 | 2.15 | 31.8 | 1.23 | 25.4 | 1.00 |
| FD56-1270-08-10 | - | - | Socket | 5/8 | 3/4 | 3/4-16 | Female SAE O-Ring | 3 | 66.3 | 2.61 | 38.1 | 1.50 | 30.2 | 1.19 |
| FD56-1270-12-12 | - | - | Socket | 3/4 | 1 1/16 | 1 1/16-12 | Female SAE O-Ring | 3 | 82.6 | 3.25 | 46.7 | 1.81 | 38.1 | 1.50 |
| FD56-1270-1616 | - | - | Socket | 1 | 1 5/16 | 1 5/16-12 | Female SAE O-Ring | 3 | 97.0 | 3.82 | 54.1 | 2.10 | 42.9 | 1.69 |

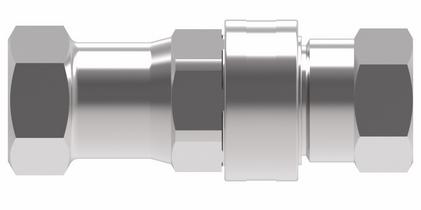

Female NPT, Non Valved
Figure 4
Figure 3
Figure 1

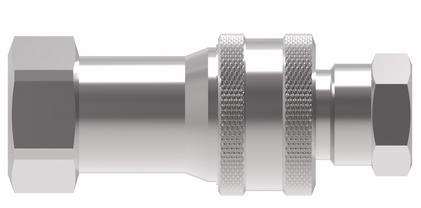

Female NPT, Connect Under Pressure Style
NOTE: Incorporates a pusher device to open mating valved coupling halves. *Male halves contain no seals.
Figure 5
