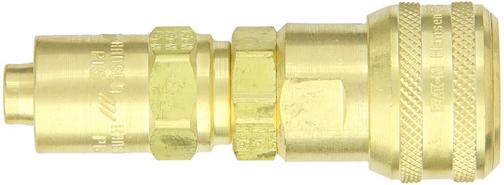

Part Number Coupling Type Body Size Hose I.D. Hose O.D Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)
5SD5 Socket/Female 1/2 3/8 9/16 Brass 7 3.50 1.50 .69 88.90 38.10 17.53
5SD7 Socket/Female 1/2 3/8 5/8 Brass 7 3.50 1.50 .75 88.90 38.10 19.05
5SD9 Socket/Female 1/2 3/8 11/16 Brass 7 3.50 1.50 .81 88.90 38.10 20.57
5SD11 Socket/Female
 1/2 3/8 3/4 Brass 7 3.50 1.50 .88 88.90 38.10 22.35
5SP13 Socket/Female
 1/2 1/2 13/16 Brass 7 4.10 1.50 .94 104.14 38.10 23.88
5SP15 Socket/Female
 1/2 1/2 7/8 Brass 7 4.10 1.50 1 104.14 38.10 25.40
5SR23 Socket/Female
 1/2 3/4 1 1/8 Brass 7 4.23 1.50 1.25 107.44 38.10 31.75
5SR25 Socket/Female
 1/2 3/4 1 3/16 Brass 7 4.23 1.52 1.31 107.44 38.10 33.27
5SR27 Socket/Female
 1/2 3/4 1 1/4 Brass 7 4.23 1.54 1.38 107.44 39.12 35.05

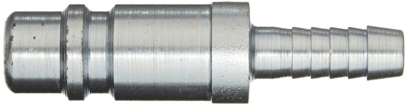

Part Number Coupling Type Body Size Hose ID Material Fig A B A B
(in) (in) (mm) (mm)
585 Plug/Male 1/2 5/16 Steel 6 2..66 .69 67.56 17.53
585G† Plug/Male 1/2 5/16 Brass 6 3.37 .98 85.60 24.89
59 Plug/Male 1/2 3/8 Steel 6 2.66 .69 67.56 17.53
59G† Plug/Male 1/2 3/8 Brass 6 3.37 .98 85.60 24.89
60 Plug/Male 1/2 1/2 Steel 6 2.66 .75 67.56 19.05
60G† Plug/Male 1/2 1/2 Brass 6 3.37 .98 85.60 24.89
61E Plug/Male 1/2 3/4 Steel 6 3.50 1 88.90 25.40
61G† Plug/Male 1/2 3/4 Brass 6 4.22 .98 107.19 24.89
B60 Plug/Male 1/2 1/2 Brass 6 2.75 .88 69.85 22.35

Female End Connections

Hose Clamp End Connections

Dimensions

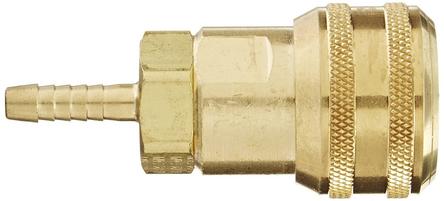

Part Number Coupling Type Body Size Hose I.D. Material Fig A B A B
(in) (in) (mm) (mm)
50400 Socket/Female 1/2 1/4 Brass 5 3.29 1.50 83.57 38.10
5700E Socket/Female 1/2 3/8 Brass 5 3.33 1.50 84.58 38.10
5800E Socket/Female 1/2 1/2 Brass 5 3.25 1.50 82.55 38.10
5900 Socket/Female 1/2 3/4 Brass 5 4.10 1.50 104.14 38.10

† With Bleeder Ball Check-Reduces Hose Whip

Figure 6

  • Standard body material: Brass
  • Standard seal material: Buna-N
  • Optional Seal and valve materials: Sillicone-138, FKM-143, EDM-192

Figure 7

All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439

(former MIL-C-4109

Figure 4

† With Bleeder Ball Check-Reduces Hose Whip

  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer

Figure 5

Dimensions

Series Body Size Max Operating Pressure Min Burst Pressure Rated Flow
5000 1/2 35 (bar) 500 (psi) 140 (bar) 2000 (psi) 2040 (lpm) 72 (scfm)

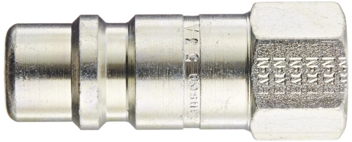

Part Number Coupling Type Body Size Port Size Thread Type Material Fig C D Hex C D Hex
(in) (in) (in) (mm) (mm) (mm)

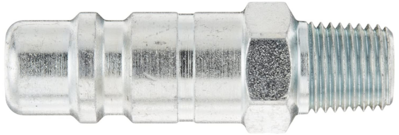

53A Plug/Male 1/2 1/4 1/4-18 NPTF Steel 4 1.92 .79 .69 48.77 20.07 17.53
53 Plug/Male 1/2 3/8 3/8-18 NPTF Steel 4 2.06 .94 .81 52.32 23.88 20.57
53G† Plug/Male 1/2 3/8 3/8-18 NPTF Steel 4 2.9 .98 .88 73.66 24.89 22.35
55 Plug/Male 1/2 1/2 1/2-14 NPTF Steel 4 2.34 1.15 1 80.52 29.21 25.40
55G† Plug/Male 1/2 1/2 1/2-14 NPTF Steel 4 3.17 1.15 1 80.52 29.21 25.41
57 Plug/Male 1/2 3/4 3/4-14 NPTF Steel 4 2.44 1.37 1.19 61.98 34.80 30.23
Part Number Coupling Type Body Size Port Size Thread Type Material Fig C D Hex C D Hex
(in) (in) (in) (mm) (mm) (mm)
50E Plug/Male 1/2 1/4 1/4-18 NPTF Steel 2 2.25 .79 .69 57.15 20.07 17.53
50G† Plug/Male 1/2 1/4 1/4-18 NPTF Steel 2 2.90 .98 .88 73.66 24.89 22.35
52 Plug/Male 1/2 3/8 3/8-18 NPTF Steel 2 2.25 .87 .75 57.15 22.10 19.05
52G† Plug/Male 1/2 3/8 3/8-18 NPTF Steel 2 2.90 .98 .88 73.66 24.89 22.35
54E Plug/Male 1/2 1/2 1/2-14 NPTF Steel 2 2.44 1.01 .88 61.98 25.65 22.35
54G† Plug/Male 1/2 1/2 1/2-14 NPTF Steel 2 3.09 .98 .88 78.49 24.89 22.35
56 Plug/Male 1/2 3/4 3/4-14 NPTF Steel 2 2.50 1.23 1.03 63.50 31.24 26.92
56G† Plug/Male 1/2 3/4 3/4-14 NPTF Steel 2 3.14 1.19 1.06 79.76 30.23 26.92
B52 Plug/Male 1/2 3/8 3/8-18 NPTF Brass 2 2.25 .87 .75 57.15 22.10 19.05
B54 Plug/Male 1/2 1/2 1/2-14 NPTF Brass 2 2.44 1.01 .88 61.98 25.65 22.35

Interchangeability

Figure 1

Figure 3

Figure 2

Hose Stem End Connections

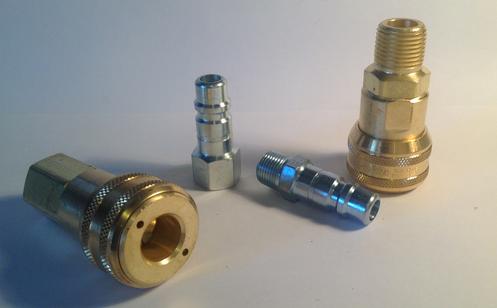

The Hansen 5000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings

Part Number Coupling Type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)
5000A Socket/Female 1/2 1/4 1/4-18 NPTF Brass 3 2.72 1.50 1 69.09 38.10 25.40
5000 Socket/Female 1/2 3/8 3/8-18 NPTF Brass 3 2.79 1.50 1 70.87 38.10 25.40
5200 Socket/Female 1/2 1/2 1/2-14 NPTF Brass 3 3.07 1.50 1 77.98 38.10 25.40
5400E Socket/Female 1/2 3/4 3/4-14 NPTF Brass 3 3.10 1.50 1.19 78.74 38.10 30.23

Physical Characteristics

Figure 8

Applications & Markets

† With Bleeder Ball Check-Reduces Hose Whip

Part Number Coupling Type Body Size Hose I.D Hose O.D Material Fig A B Hex A B Hex
(in) (in) (in) (mm) (mm) (mm)

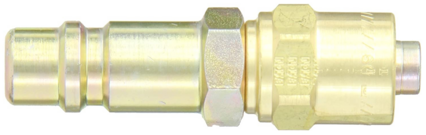

5PB3 Plug/Male 1/2 1/4 1/2 Steel 8 2.81 .70 .63 71.37 17.78 16
5PB5 Plug/Male
 1/2 1/4 9/16 Steel 8
 2.81
 .77 .69 71.37
 19.56 17.53
5PB7 Plug/Male
 1/2
 1/4 5/8 Steel
 8
 2.81
 .84 .75 71.37
 21.34 19.05
5PD5 Plug/Male
 1/2
 3/8 9/16 Steel
 8
 2.94 .77 .69 74.68 19.56 17.53
5PD7 Plug/Male
 1/2
 3/8 5/8 Steel
 8
 2.94
 .84 .75 74.68
 21.34 19.05
5PD9 Plug/Male
 1/2
 3/8 3/4 Steel
 8
 2.94
 .91 .81 74.68
 23.11 20.57
5PD11 Plug/Male
 1/2
 3/8 13/16 Steel
 8
 2.94
 .98 .88 74.68
 24.89 22.35
5PD13 Plug/Male
 1/2
 3/8 13/16 Steel
 8
 2.94
 1.05 .94 91.95
 26.67 23.88
5PP13 Plug/Male
 1/2
 1/2 1/2 Steel
 8
 3.62 1.05 .94 91.95 26.67 23.88
5PP15 Plug/Male
 1/2
 1/2 7/8 Steel
 8
 3.62 1.12 1 91.95 28.45 25.40
5PR23 Plug/Male
 1/2
 1/2 3/4 1 1/8
 8
 3.75 1.40 1.25 95.25 35.56 31.75
5PR25 Plug/Male
 1/2
 1/2 3/4 1 3/16
 8
 3.75 1.47 1.31 95.25 37.34 33.27
5PR27 Plug/Male
 1/2
 1/2 3/4 1 1/4
 8
 3.75 1.54 1.38 95.25 39.12 35.05

Dimensions

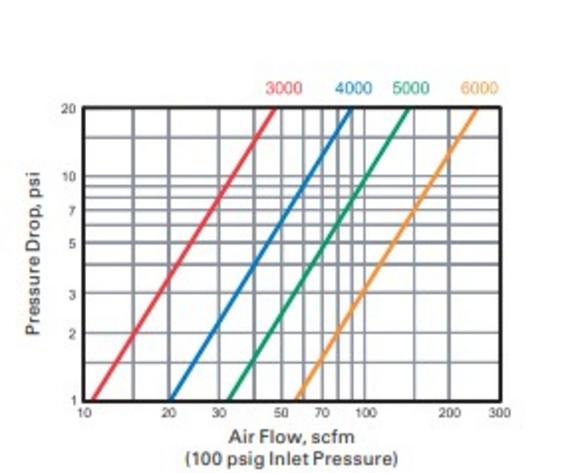

Flow Data


  • ​Easy automatic, push to connect design provides instantaneous connection or disconnection of lines, plus automatic shut-off of socket/female end of line

Product Features

Dimensions

  • All sizes accept US industrial interchange 1/4" & 1/2" also accept ISO 6150 series B  and A-A-59439 plugs/males
  • Optional sleeve lock prevents accidental disconnection

The Danfoss Hansen  5000 series industrial interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids. This series sets the industry standard for pin lock style pneumatic couplings

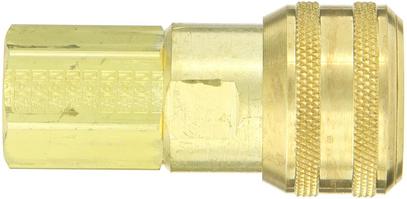

Part Number Coupling Type Body Size Port Size Thread Type Material Fig A B Hex A B Hex
(in) (in) (in (mm) (mm) (mm)

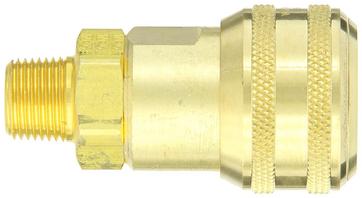

50100 Socket/Female 1/2 1/4 1/4-18 NPTF Brass 1 2.78 1.50 1 70.61 38.10 25.40
5100E Socket/Female 1/2 3/8 3/8-18 NPTF Brass 1 2.79 1.50 1 70.87 38.10 25.40
5300E Socket/Female 1/2 1/2 1/2-14 NPTF Brass 1 2.98 1.50 1 75.69 38.10 25.40
5500 Socket/Female 1/2 3/4 3/4-14 NPTF Brass 1 2.98 1.50 1.06 75.69 38.10 26.92

Male End Connections

Hansen 5000 Series
