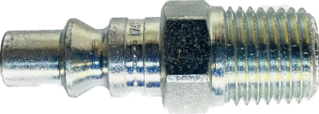

| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||
| 2607 | Plug/Male | 1/4 | 1/8 | 1/8-27 | NPTF | 2 | 1.42 | .58 | .5 | 36.1 | 14.7 | 12.7 |
| 2608 | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 1.68 | .65 | .56 | 42.7 | 16.5 | 14.2 |
| 2608B | Plug/Male | 1/4 | 1/4 | 1/4-19 | BSPT | 2 | 1.68 | .65 | .56 | 42. | 16.5 | 14.2 |
| 20AP37M | Plug/Male | 1/4 | 3/8 | 3/8-18 | NPTF | 2 | 1.68 | .79 | .69 | 42.7 | 20.1 | 17.5 |
Dimensions
Dimensions
Figure 2

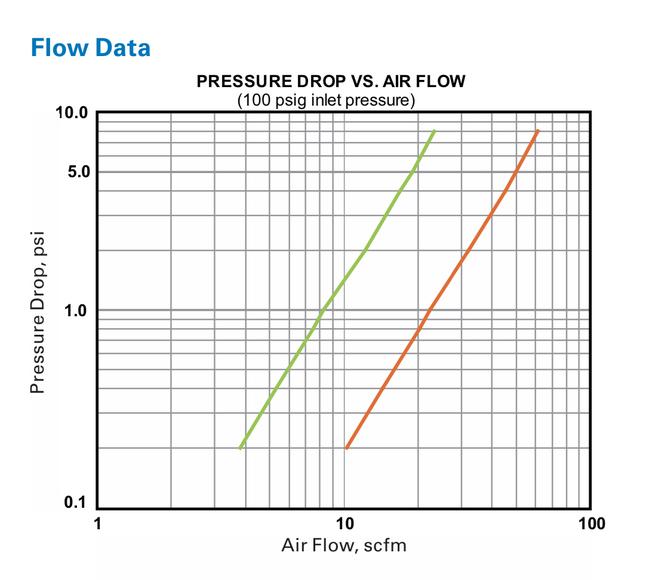

| Series | Body Size | Max Operating Pressure | Min Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|---|
| 210 | 1/4 | 17 (bar) | 250 (psi) | 68 (bar) | 1000 (psi) | 538 (lpm) | 19 (scfm |
| 310 | 3/8 | 17 (bar) | 250 (psi) | 68 (bar) | 1000 (psi) | 1415 (lpm) | 50 (scfm |
Figure 2
Physical Characteristics

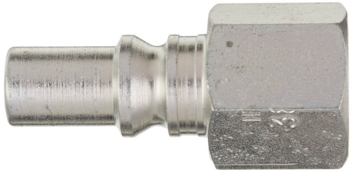

Female End Connections - Plug
The Hansen 210/310 series pneumatic couplings have an automatic push to connect Pin Type One Way Shut Off operation
Dimensions
| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||
| 2609 | Plug/Male | 1/4 | 1/4 | 1/4-18 | NPTF | 2 | 1.55 | 0.79 | .69 | 39.4 | 20.1 | 17.5 |
| 2609B | Plug/Male | 1/4 | 1/4 | 1/4-19 | BSPP | 2 | 1.52 | 0.79 | .69 | 38.6 | 20.1 | 17.5 |
| 20AP37F | Plug/Male | 1/4 | 3/8 | 3/8-18 | NPTF | 2 | 1.61 | 0.94 | .81 | 40.9 | 23.9 | 20.6 |
210 Series
Figure 2

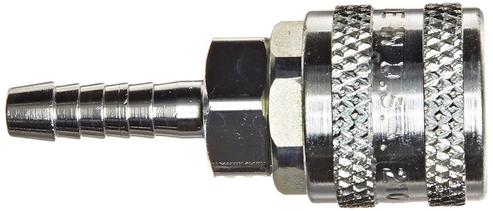

Hose Stem End Connections - Socket
Figure 1
Dimensions
Dimensions
Figure 2

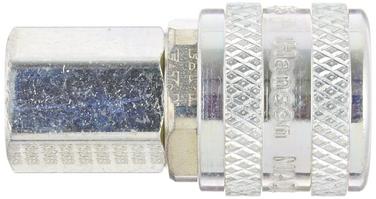

Female End Connections - Socket
Dimensions

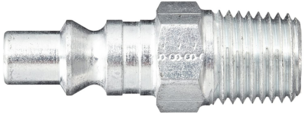

Male End Connections - Plug
Dimensions
Applications & Markets
Figure 1
| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||

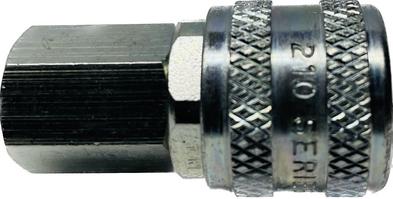

| 210 | Socket/Female | 1/4 | 1/4 | 1/4-18 | NPTF | 1 | 1.87 | 1.02 | .69 | 47.5 | 25.9 | 17.5 |
| 62210* | Socket/Female | 1/4 | 1/4 | 1/4-18 | NPTF | 1 | 1.87 | 1.02 | .69 | 47.5 | 25.9 | 17.5 |
| 210FG | Socket/Female | 1/4 | 1/4 | 1/4-19 | BSPP | 1 | 1.64 | 1.02 | .75 | 41.7 | 25.9 | 19.1 |
| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||
| 310313 | Socket/Female | 3/8 | 3/8 | 3/8-118 | NPTF | 1 | 2.37 | 1.21 | 0.94 | 60.2 | 30.7 | 23.9 |

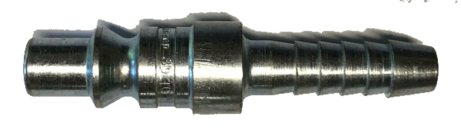

Hose Stem End Connections - Plug

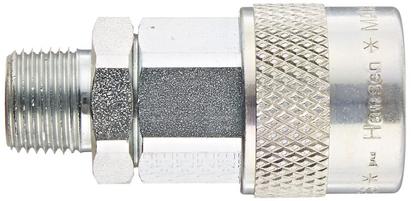

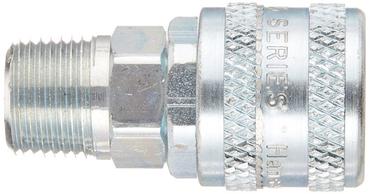

Male End Connections - Socket
- Standard body material: Zinc trivalent carbon Steel
- Standard seal material: Buna-N
Figure 2
| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | A | B | Hex | A | B | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||
| 310 | Socket/Female | 3/8 | 3/8 | 3/8-18 | NPTF | 1 | 2.1 | 1.21 | .94 | 53.3 | 30.7 | 23.9 |
Figure 1
Figure 1

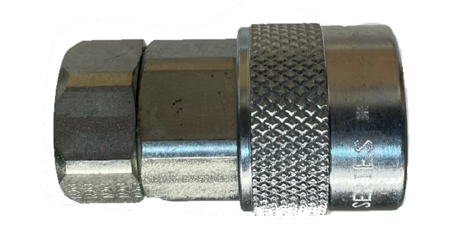

Female End Connections - Socket
Figure 1
| Part Number |
Coupling Type | Body Size | Port Size | Thread | Type | Fig | C | D | Hex | C | D | Hex |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((in)) | (mm) | (mm) | (mm) | |||||||
| 3806 | Plug/Male | 3/8 | 3/8 | 3/8-18 | NPTF | 2 | 1.84 | .94 | .81 | 46.7 | 23.9 | 20.6 |
- Construction
- Maintenance & Repair
- In - Plant/Industrial
- Pneumatic Tools

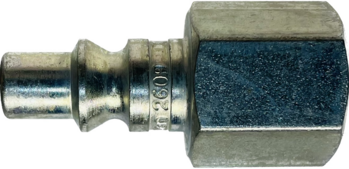

Female End Connections - Plug
| Part Number |
Coupling Type | Body Size | Hose I.D. | Fig | C | D | C | D |
|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((mm)) | (mm) | |||||
| 3807 | Plug/Male | 3/8 | 3/8 | 2 | 2.37 | 0.59 | 60.2 | 15.0 |
| Part Number |
Coupling Type | Body Size | Hose I.D. | Fig | A | B | A | B |
|---|---|---|---|---|---|---|---|---|
| (in) | (in) | ((mm)) | (mm) | |||||
| 310022 | Socket/Female | 3/8 | 3/8 | 1 | 2.97 | 1.21 | 75.4 | 30.7 |

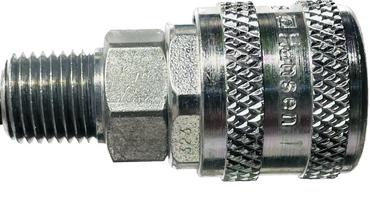

Male End Connections - Socket
Dimensions
Figure 2

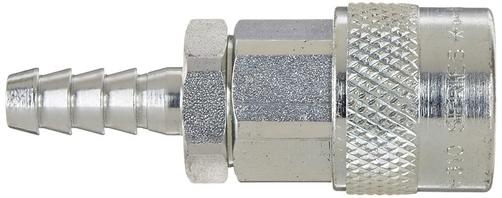

Hose Stem End Connections - Socket
* Same as 210 but with a brass valve
Hose Stem End Connections - Plug
Dimensions

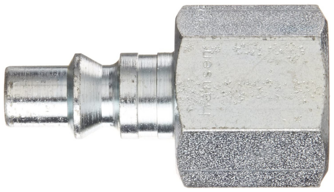

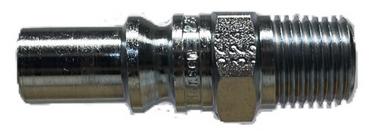

Male End Connections - Plug
Dimensions
Product Features
Dimensions
- Automatic push - to - connect
- Pin - lock design
- Alloy steel locking pins
310 Series
Figure 1
Dimensions
