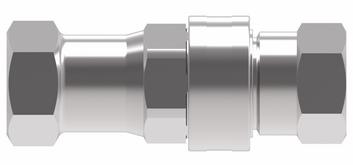

Figure 3
*Additional sizes are available upon request
Toll Free 855-457-4474

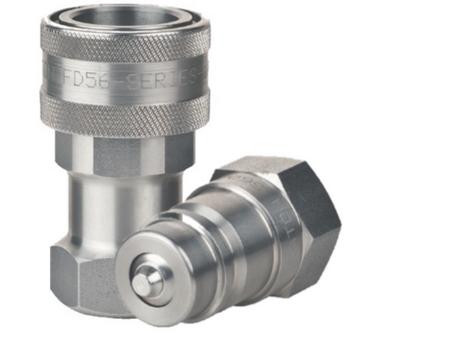

Hansen 5600 Series Stainless Steel is a rugged poppet style ball locking quick disconnect coupling. As the original manufacturer of the ISO 7241-1 A style coupling, Danfoss has reinvented this quick disconnect coupling series to meet your application needs by offering a new stainless steel construction
Product Features

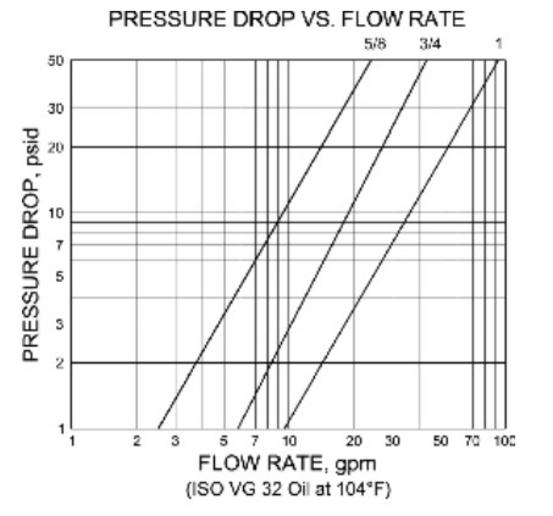

| Part Number | Coupling Type | Body Size | Thread | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | Hex | A | B | Hex | |||||
| 560024-8-10 | Socket | 5/8 | 1/2-14 NPTF | 1 | 2.61 | 1.5 | 1.19 | 66.3 | 38.1 | 30.2 |
| 560024-12-12 | Socket | 3/4 | 3/4-14 NPTF | 1 | 3.25 | 1.81 | 1.50 | 82.6 | 46 | 38.1 |
| 560024-16-16 | Socket | 1 | 1 11-1/2 NPTF | 1 | 3.82 | 2.1 | 1.69 | 97 | 53.3 | 42.9 |
| Body Size | Max. Operating Pressure | Minimum Burst Pressure Connected | Rated Flow | Air Inclusion | Fluid Loss | |||
|---|---|---|---|---|---|---|---|---|
| (in) | (bar) | (psi) | (bar) | (psi) | (lpm) | (gpm) | cc.max. | cc.max. |
| 5/8 | 207 | 3000 | 621 | 9000 | 45 | 12 | 2.8 | 2.8 |
| 3/4 | 207 | 3000 | 621 | 9000 | 106 | 28 | 10.0 | 8.2 |
| 1 | 207 | 3000 | 621 | 9000 | 189 | 50 | 14.2 | 14.2 |
Applications & Markets
Sockets
- Hydraulic and Fluid Transfer
- Agricultural Equipment
- Construction Equipment
- Steel Mills
- Plant Manufacturing and Processing Equipment
- Dump, Snow Plow,and Maintenance Vehicles
- Available sizes include: 5/8", 3/4", 1"*
- Female NPTF thread ends
| Part Number | Coupling Type | Body Size | Thread | Figure | Dimensions | |
|---|---|---|---|---|---|---|
| (in) | (mm) | |||||
| FD56-1001-08-10 | Complete | 5/8 | 1/2-14 NPTF | 3 | 3.78 | 96.0 |
| FD56-1001-12-12 | Complete | 3/4 | 3/4-14 NPTF | 3 | 4.56 | 115.8 |
| FD56-1001-16-16 | Complete | 1 | 1 11-1/2 NPTF | 3 | 4.86 | 123.4 |
Figure 2
Phone 770-887-0470
Air Products Company is a leading distributor, serving this industry for the last 72 years, specializing in the sales and service of the Danfoss Hansen quick disconnect couplings, Graco pumps, sprayers, industrial fluid handling, and Fastest Inc line of leak detection equipment and fittings.
Figure 1
Plugs
| Part Number | Coupling Type | Body Size | Thread | Figure | Dimensions | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | Hex | A | B | Hex | |||||
| 560049-8-10 | Plug | 5/8 | 1/2-14 NPTF | 2 | 2.02 | - | 1.06 | 51.3 | - | 26.9 |
| 560049-12-12 | Plug | 3/4 | 3/4-14 NPTF | 2 | 2.55 | - | 1.38 | 64.8 | - | 35.1 |
| 560049-16-16 | Plug | 1 | 1 11-1/2 NPTF | 2 | 3.1 | - | 1.62 | 78.7 | - | 41.1 |
Physical Characteristics
Fax 706-265-1477
Text 770-887-0470
- Self-sealing poppet valve provides excellent high and low pressure sealing
- Stainless steel construction offers excellent corrosion resistance in tough environments
Complete Set ( Includes Socket & Plug)
- Standard body material: 303 stainless steel
- Standard body material: Buna-N. EPDM and FKM seals are available upon request.
